When Should Trailer Manufacturers Choose a Direct-Wire LED Rear Lamp Kit?
A B2B comparison of direct-wire trailer rear lamps for OEM harness integration, replacement projects and cost-controlled production.
When Should Trailer Manufacturers Choose a Direct-Wire LED Rear Lamp Kit?
Trailer rear-light kits range from short wire outlets to complete plug-and-cable assemblies. The most complete kit is not always the best purchasing decision. OEM builders that already control the trailer harness may gain more flexibility from a direct-wire version.

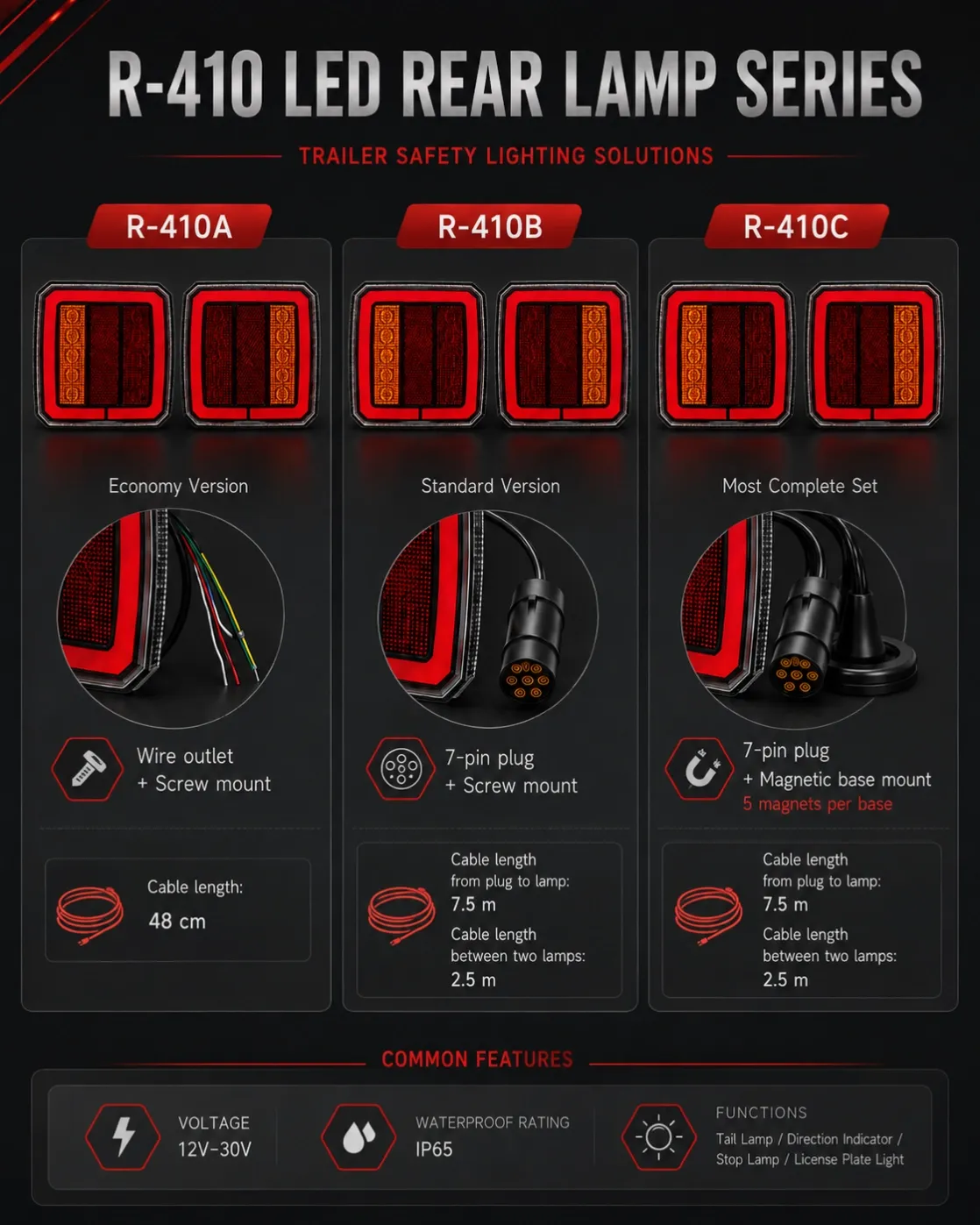

R-410A is an economy configuration with two LED rear lamps, a 48 cm wire outlet and screw mounting.
Direct Wiring Supports OEM Harness Control
A short wire outlet allows the trailer manufacturer to connect the lamps to an existing harness, junction box or chosen connector. This is useful when cable routing and plug type are already standardized in the production line.
The benefit is lower kit complexity and freedom to use the OEM’s own wiring components. The tradeoff is additional assembly work and a greater need for accurate wiring instructions.
Four Functions in One Lamp Pair
R-410A provides tail light, direction indicator, stop-brake light and license plate light functions. Combining these functions reduces the number of separate rear housings required on the trailer.
During sample approval, buyers should confirm left/right orientation and the position of license-plate illumination. A complete function list is only valuable when the lamps are installed correctly.
Why Screw Mounting Suits Permanent Fleets
A fixed screw mount is appropriate for trailers that keep the same lamp set throughout their service life. It avoids the retention questions associated with temporary magnetic systems.
The rear panel, fastener access, cable entry and sealing method should be checked before the mounting holes are frozen in production.
12–30V and IP65
The voltage range supports common 12V and 24V towing systems. IP65 is listed for protection against dust and water jets.
IP65 should not be described as immersion protection. Buyers should ensure cable joints and connectors receive suitable protection because the system is only as reliable as its weakest electrical connection.
Commercial Cost Comparison
R-410A may offer the lowest component cost when the trailer already includes a harness. A complete 7-pin kit can save labor, but it may duplicate wiring the OEM has already purchased.
Procurement teams should compare total installed cost rather than lamp price alone. Labor, connectors, sealing materials and warranty exposure all affect the real result.
RFQ Checklist
Confirm the four functions, 48 cm cable, wire colors, mounting hardware, voltage, packaging and required approvals. The brochure does not list ECE numbers, so documentation must be requested before road-legal claims are made.
R-410A is the right choice when the buyer wants permanent screw-mounted lamps and prefers to control the wiring system internally.
