TRUCK DRIVING LIGHT

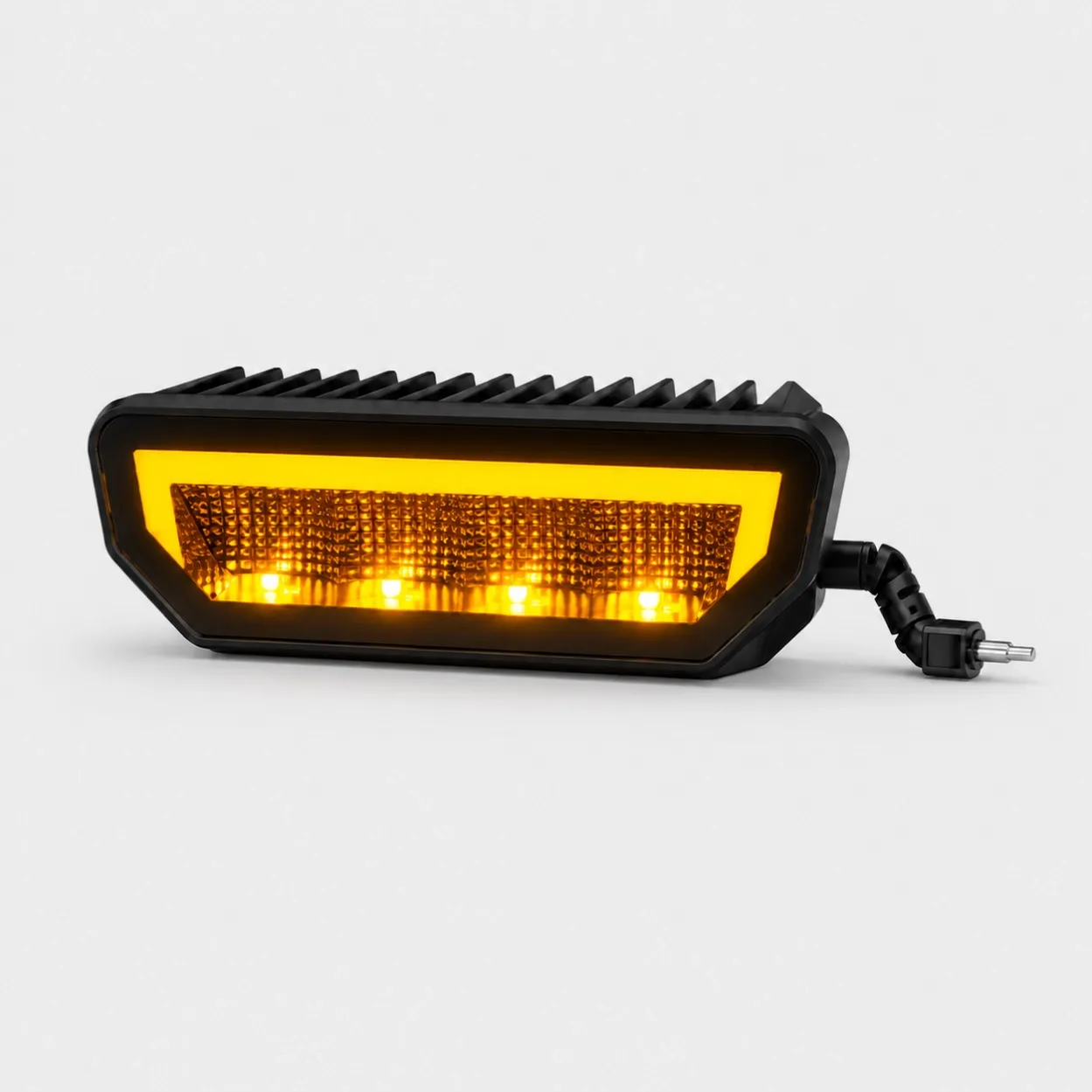

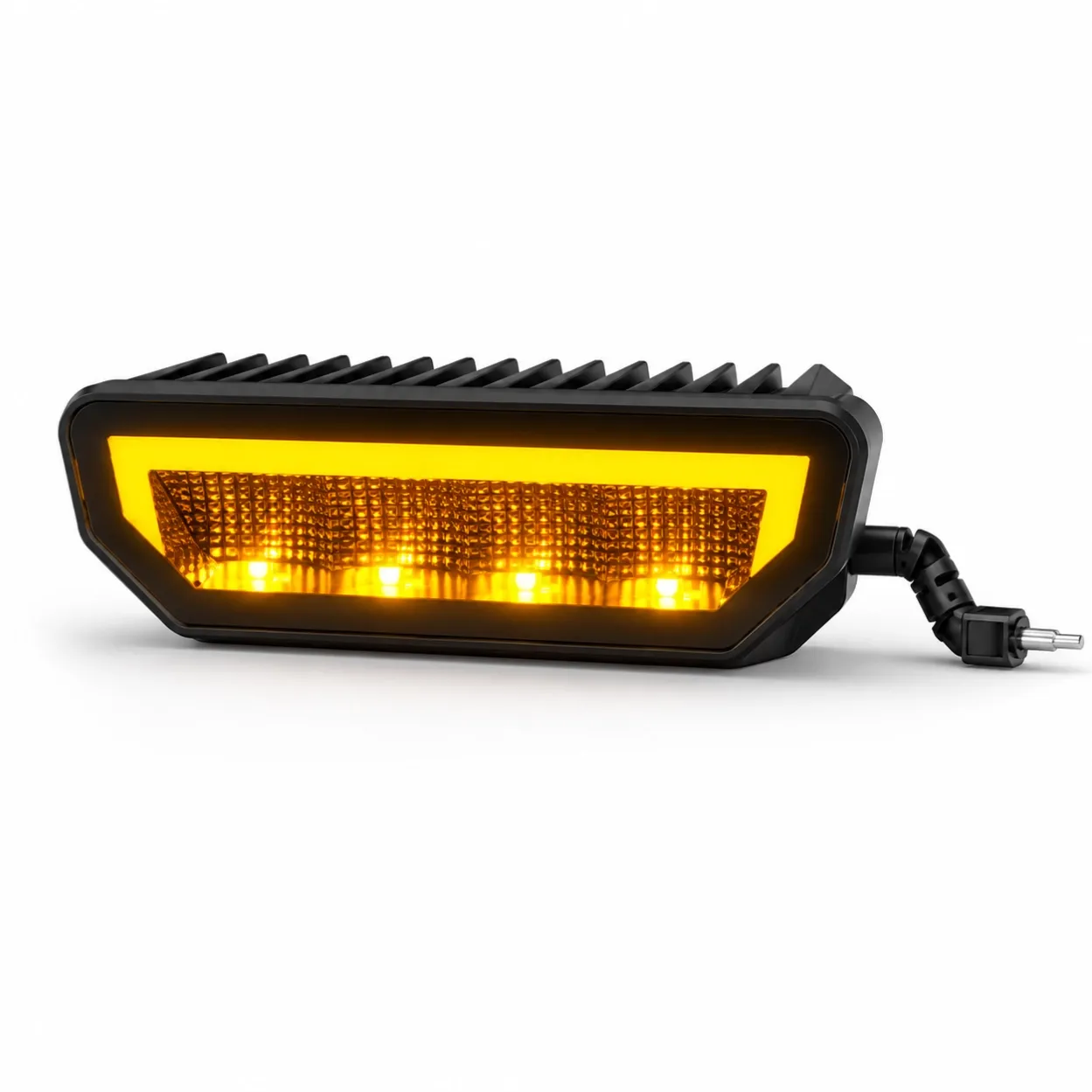

814A 24W Amber LED Flood Position Light | 2400 lm, IP67
814A compact amber LED position/flood light for trucks, pickups, trailers and special vehicles. 24W, 2400 lm, 10–48V DC, OSRAM LEDs, flood beam, 171.5 × 70 × 48 mm, PC lens, aluminum housing, IP67 and brochure-listed R10.
Specifications
- Model
- 814A
- Power
- 24W
- Luminous Flux
- 2400 lm
- Input Voltage
- 10–48V DC
- Function
- Amber Position Light
- Beam
- Flood
- LED
- OSRAM
- Dimensions
- 171.5 × 70 × 48 mm
- Protection Level
- IP67
- Materials
- Aluminum Housing / PC Lens
814A 24W Amber LED Flood Position Light for Commercial Vehicle Programs
The 814A combines an amber position-light function with a compact flood-beam format for trucks, pickups, trailers and special vehicles. It is designed for buyers who need a visible auxiliary light that fits limited mounting space without adding another large lamp to the vehicle.
For importers, brand owners and equipment manufacturers, the practical question is not simply whether a lamp is bright. The real questions are whether it fits the intended vehicle, works across the electrical platforms in the range, can be installed consistently and can be supported with the documentation required by the destination market.
Key buyer value
• 24W and 2400 lm provide a clear amber output in a compact housing. This matters when distributors need a credible light-output specification without moving to a larger enclosure that may complicate packaging or installation.
• 10–48V DC coverage reduces the need to stock separate low-voltage versions for common truck, trailer, pickup and special-vehicle platforms. One qualified version can simplify SKU planning and reduce inventory fragmentation.
• The flood beam spreads light over a wider nearby area. For fleet and equipment applications, this can improve side or forward-area recognition while avoiding the narrow, long-range behavior of a spot beam.
• The aluminum housing helps manage heat and provides a more durable structure than a lightweight decorative enclosure. Better thermal management supports product consistency and can lower the risk of early failures and avoidable warranty claims.
• A PC lens is used for the optical surface. For B2B buyers, this supports a practical balance of impact resistance, weight and repeatable production.
• The 304 stainless-steel bracket resists corrosion at the mounting point. This matters because a sound lamp can still generate complaints when brackets rust, loosen or become difficult to service.
• IP67 is the declared website protection level. It supports use in dusty and wet vehicle environments, while final suitability should be confirmed against the buyer’s installation, connector and local compliance requirements.
• R10 is listed in the supplied brochure. Buyers should verify the certificate scope, model reference and market acceptance during sample approval before making any regulatory claim.
Technical specifications
Model: 814A
Function: Amber position light
Power: 24W
Luminous flux: 2400 lm
Input voltage: 10–48V DC
LED: OSRAM
Beam: Flood
Color temperature: 5300–5700K (brochure specification)
Housing: Aluminum
Lens: PC
Mounting bracket: 304 stainless steel
Protection level: IP67
Brochure-listed compliance: R10
Dimensions: 171.5 × 70 × 48 mm
Brochure-listed service-life figure: 60,000 hours
Typical applications

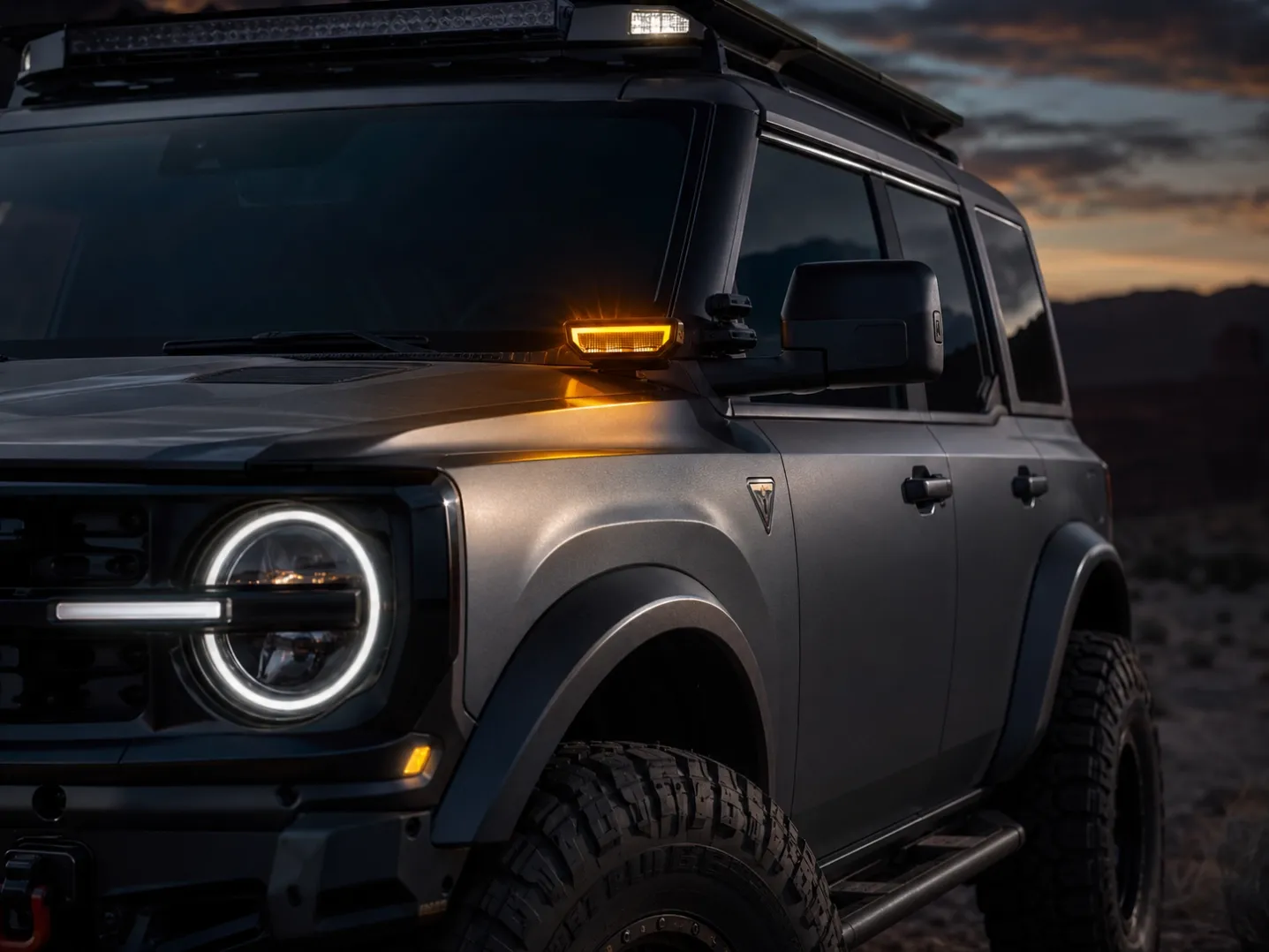

The 814A is suitable for auxiliary positioning and area-visibility duties on trucks, trailers, pickups, off-road vehicles and special-purpose equipment. The compact 70 mm depth is useful when the mounting area is restricted by a hood edge, cab structure, rack, body panel or equipment guard.
Installation and purchasing considerations
Before placing a production order, buyers should confirm mounting orientation, bracket clearance, cable routing, connector requirements and the electrical function expected in the final vehicle. A sample should be evaluated on the real vehicle because output appearance can change with mounting height, surrounding bodywork and ambient lighting.
The 10–48V DC range can reduce variant management, but it does not replace vehicle-level electrical validation. OEM and fleet buyers should test start-up voltage behavior, switching logic, cable protection and electromagnetic compatibility as part of their own approval process.
Who typically buys the 814A?
Truck and off-road lighting importers may use the model to broaden an auxiliary lighting range with a compact amber option. Brand owners may value the clearly defined dimensions and electrical range when planning packaging and listings. Equipment manufacturers can integrate the lamp where mounting space is limited. Fleet upfitters and body builders may use the format for standardized auxiliary visibility packages.
Sample approval checklist
- Confirm 171.5 × 70 × 48 mm fit and bracket access.
- Confirm flood-beam coverage at the planned mounting height.
- Validate 10–48V DC operation on the target vehicle.
- Check connector, cable length and sealing details.
- Review the R10 documentation and exact model scope.
- Agree on packaging, labeling and traceability before mass production.
- Run vibration, water-ingress and thermal checks appropriate to the application.
FAQ
Is the 814A a spot or flood beam?
The supplied brochure identifies it as a flood beam. Buyers should review a sample on the intended vehicle to confirm usable coverage.
Can one version cover both 12V and 24V vehicle programs?
The brochure specifies 10–48V DC. This can simplify inventory, subject to validation on the buyer’s electrical platform.
Is the product rated IP68?
No. The website declares the protection level as IP67. Final sealing performance also depends on installation and connector treatment.
Does R10 automatically approve every installation?
No. R10 is brochure-listed, but the buyer should verify certificate validity, model scope and destination-market requirements.
Requesting a B2B quotation
For an accurate quotation, provide expected annual volume, target market, vehicle type, mounting position, connector and cable requirements, packaging or private-label needs, and the documentation required for your compliance review. This information helps reduce sample revisions and shortens the approval process.
