LED Camping Light
C-405A/C-405B LED Camper Scene Light Series | Surface Mount
Surface-mount LED camper and scene light series for RVs, campers, trailers and caravans. C-405A delivers 60W and 6000 lm with flash/indicator functions. C-405B offers 5, 9 and 13 inch versions from 15W to 40W. IP67 construction, wide flood illumination and 9–32V DC vehicle compatibility.
Specifications
- Series
- C-405A / C-405B
- Typical Applications
- RV / camper / trailer / caravan
- Mounting
- Surface mount
- C-405A Power
- 60W
- C-405A Luminous Flux
- 6000 lm
- C-405A Voltage
- 9–32V DC
- C-405A Functions
- Flash / indicator
- C-405B Sizes
- 5 / 9 / 13 inch
- C-405B Power
- 15W / 25W / 40W
- C-405B Luminous Flux
- 800 / 1600 / 2800 lm
- C-405B LED Count
- 15 / 36 / 60
- C-405B Output Color
- White / fluorescent yellow
- C-405B Dimensions
- 127.5 / 227.5 / 327.5 × 67 × 45.6 mm
- Housing
- Aluminum
- Lens
- Polycarbonate
- Ingress Protection
- IP67
- Operating Temperature
- -40°C to +65°C
- C-405A Approvals
- ECE R10 / ECE R65 / CE
LED Camper and Scene Lighting for Commercial Vehicle Projects
The C-405A/C-405B series is designed for exterior area lighting on RVs, campers, trailers and caravans. For OEM builders, importers and fleet-equipment suppliers, the purchasing concern is not simply brightness. A useful scene light must fit the vehicle body, provide a broad working area, resist outdoor exposure and remain consistent across repeated installations.
Wide Flood Illumination
The surface-mount housing directs a wide flood pattern around doors, storage compartments, service areas and campsites. Broad coverage helps operators work with fewer dark zones and allows vehicle builders to specify one compact lighting family for several exterior positions. This can simplify the bill of materials and reduce installation decisions on production lines.
Two Product Platforms
C-405A provides 60W power, 6000 lm output and 9–32V DC operation, with flash and indicator functions shown in the product brochure. It is suitable when a project needs stronger area lighting plus a signaling function in one surface-mounted unit.

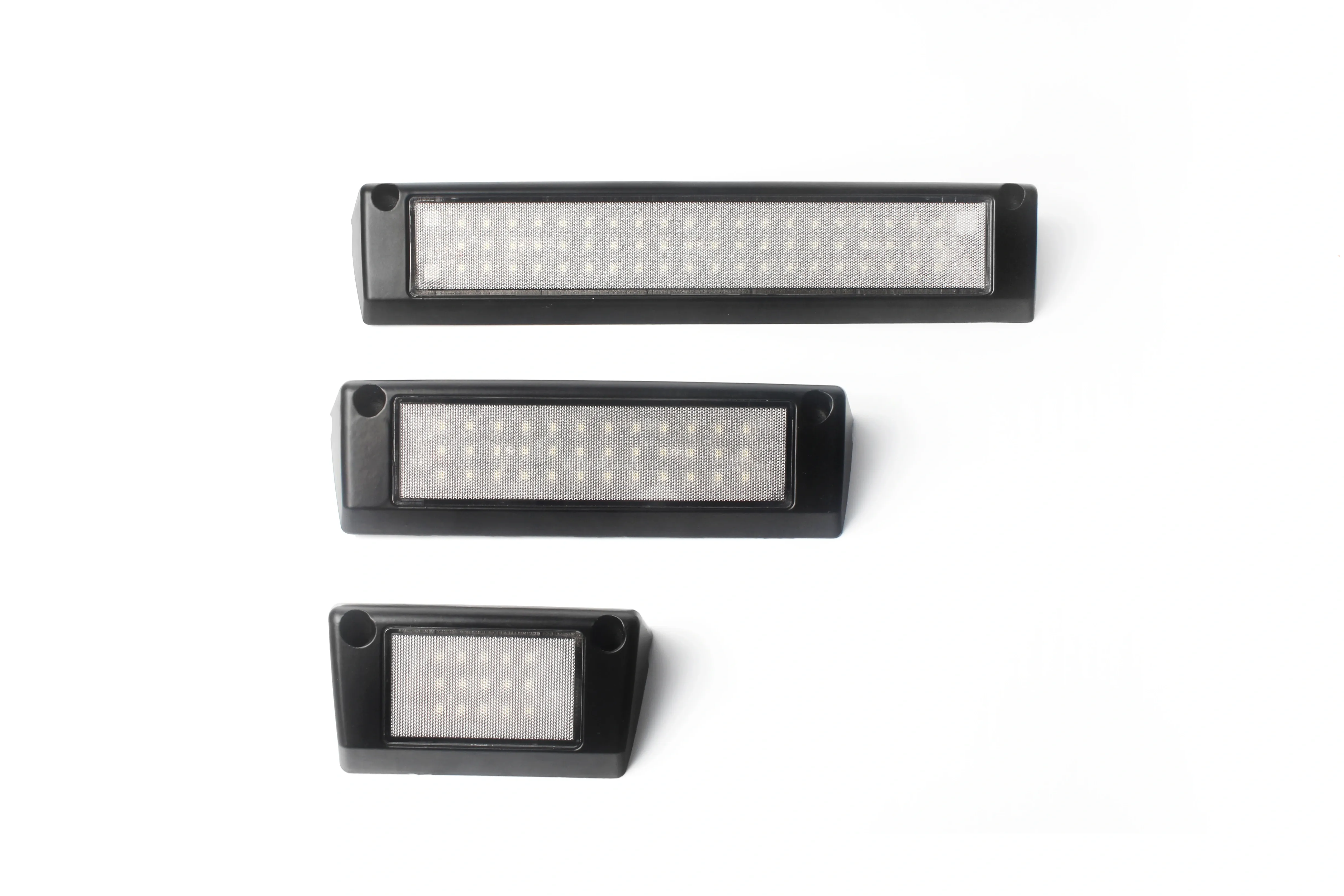

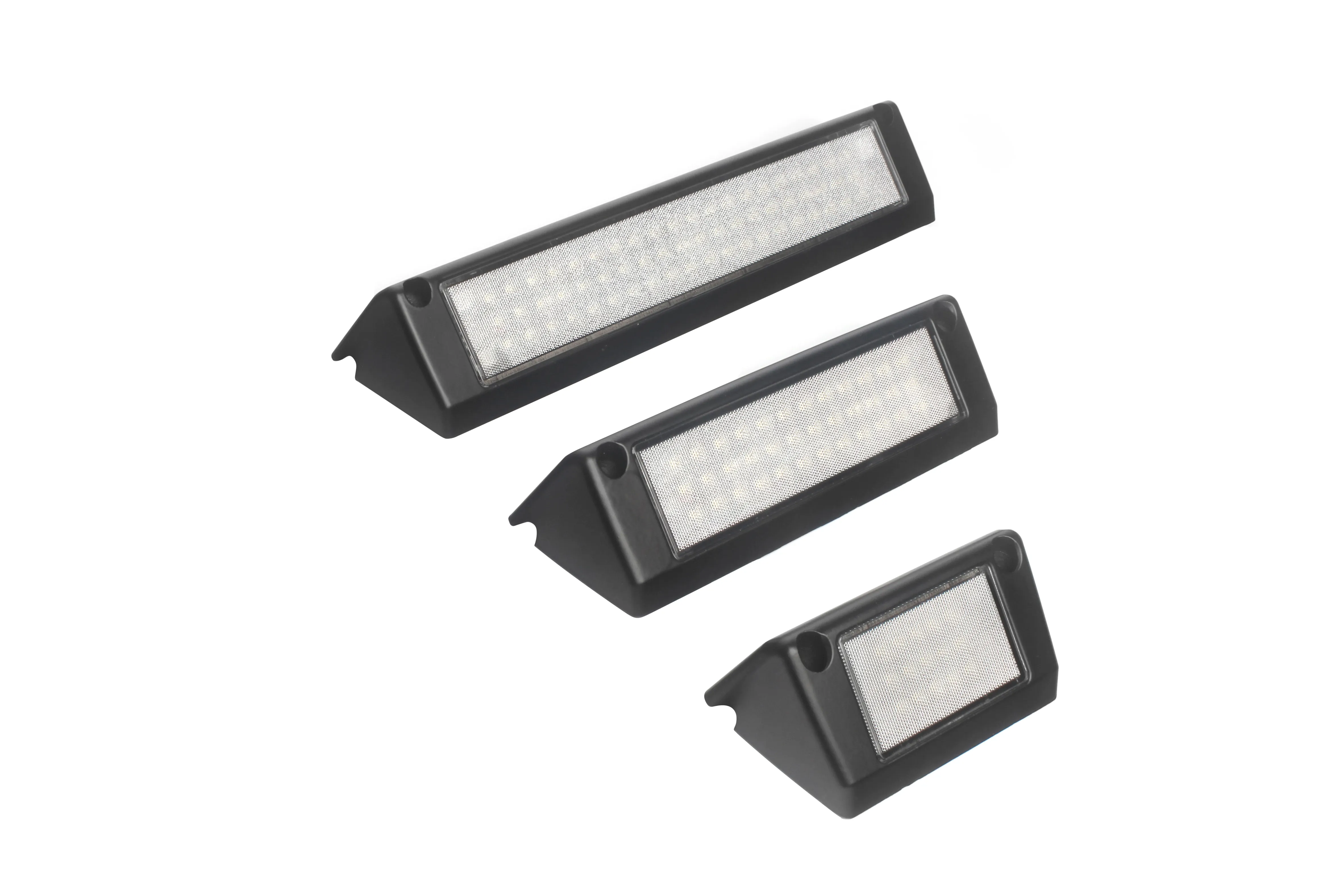

C-405B is available in 5, 9 and 13 inch versions. The three sizes provide 15W/800 lm, 25W/1600 lm and 40W/2800 lm options. Buyers can match the light output and housing length to different vehicle layouts without introducing unrelated product platforms. White or fluorescent-yellow output options support different visibility and application requirements.
Installation and Purchasing Value
Surface mounting avoids deep recessed cut-outs and makes the lights practical for new vehicle production as well as retrofit programs. C-405B dimensions are 127.5 × 67 × 45.6 mm, 227.5 × 67 × 45.6 mm and 327.5 × 67 × 45.6 mm for the 5, 9 and 13 inch versions. Clearly defined dimensions help engineering teams check mounting space before samples are ordered and reduce fitment risk during pilot installation.
Outdoor Reliability
The aluminum housing and polycarbonate lens support daily use on vehicles exposed to dust, rain and temperature change. The series is rated up to IP67 and is specified for operation from -40°C to +65°C. For distributors and OEM customers, this matters because water ingress and housing damage can create avoidable warranty claims and field-service costs.
Compliance Planning
The brochure lists ECE R10, ECE R65 and CE for C-405A. Compliance requirements vary by market and by the function in which the light is used, so buyers should confirm the exact model, installation and required approval documents before ordering. Early document review reduces the risk of receiving a product that cannot be used in the intended market.
Typical Applications
Suitable applications include motorhomes, camper vans, caravans, utility trailers, mobile workshops, service vehicles and exterior compartment lighting. When requesting a quotation, specify the model, size, output color, order quantity, mounting position and required approval documents. This gives the supplier enough information to recommend the correct configuration and helps avoid unnecessary sample revisions.
