LED driving light --off road
2.5, 4.5 & 7 Inch LED Off-Road Driving Light Series | White/Amber Position Light
LED off-road driving light series in 2.5, 4.5 and 7 inch sizes with white driving beam and white/amber position light. 20-100W, 1,228-6,140 lumens, 10-48V or 10-30V variants, IP67, aluminum housing, PC lens, roof or side mounting and ECE R10/R148 approval.
Specifications
- Series
- 2.5 / 4.5 / 7 Inch
- Function
- White Driving Beam + White/Amber Position Light
- 2.5 Inch
- 20W; 1228 lm; 2 LEDs; 10-48V DC
- 2.5 Dimensions
- 135.7 × 78.9 × 76.5 mm
- 4.5 Inch
- 40W; 2456 lm; 4 LEDs; 10-48V DC
- 4.5 Dimensions
- 135.8 × 118 × 75 mm
- 7 Inch
- 100W; 6140 lm; 4 LEDs; 10-30V DC
- 7 Inch Dimensions
- 180 × 165 × 75 mm
- Protection
- IP67
- Housing
- Aluminum
- Lens
- Polycarbonate
- Operating Temperature
- -40°C to +60°C / +85°C by model
- Mounting
- Roof Bracket / Side Mount
- Approval
- ECE R10 / R148
- Customization
- 4.5 Inch Cover & Logo Options
LED OFF-ROAD DRIVING LIGHT SERIES FOR DISTRIBUTORS AND VEHICLE BUILDERS
This product family covers 2.5-inch, 4.5-inch and 7-inch LED off-road driving lights with a white driving beam and white/amber position-light functions. It is designed for importers, 4x4 accessory distributors, commercial-vehicle upfitters and brand owners that need a coordinated range for different mounting spaces and output requirements.
WHY THIS SERIES MATTERS TO B2B BUYERS
Three sizes reduce platform mismatch. The compact 2.5-inch model fits restricted mirror, bumper and A-pillar locations. The 4.5-inch model provides higher output and supports both roof and side-mount projects. The 7-inch model provides the highest specified output in the range for larger off-road vehicles. A shared visual design lets distributors build a structured good-better-best range without sourcing unrelated lamps.
White driving beam plus white/amber position lighting gives installers two lighting functions in one housing. For distributors, this supports broader customer demand and can reduce the number of separate decorative or position-light products required. Vehicle builders must confirm how the position-light function may be used under local regulations.
Wide-voltage compatibility reduces electrical selection risk. The 2.5-inch and 4.5-inch versions operate at 10-48V DC, while the 7-inch model is specified at 10-30V DC. This covers common 12V and 24V vehicles and, for the smaller versions, additional industrial voltage platforms.
IP67 protection, aluminum housings and polycarbonate lenses are stated across the range. These features matter to off-road and commercial buyers because exposure to water, dust, vibration and temperature changes can increase warranty claims and downtime. Buyers should still confirm the intended installation and sealing requirements before production orders.
MODEL RANGE

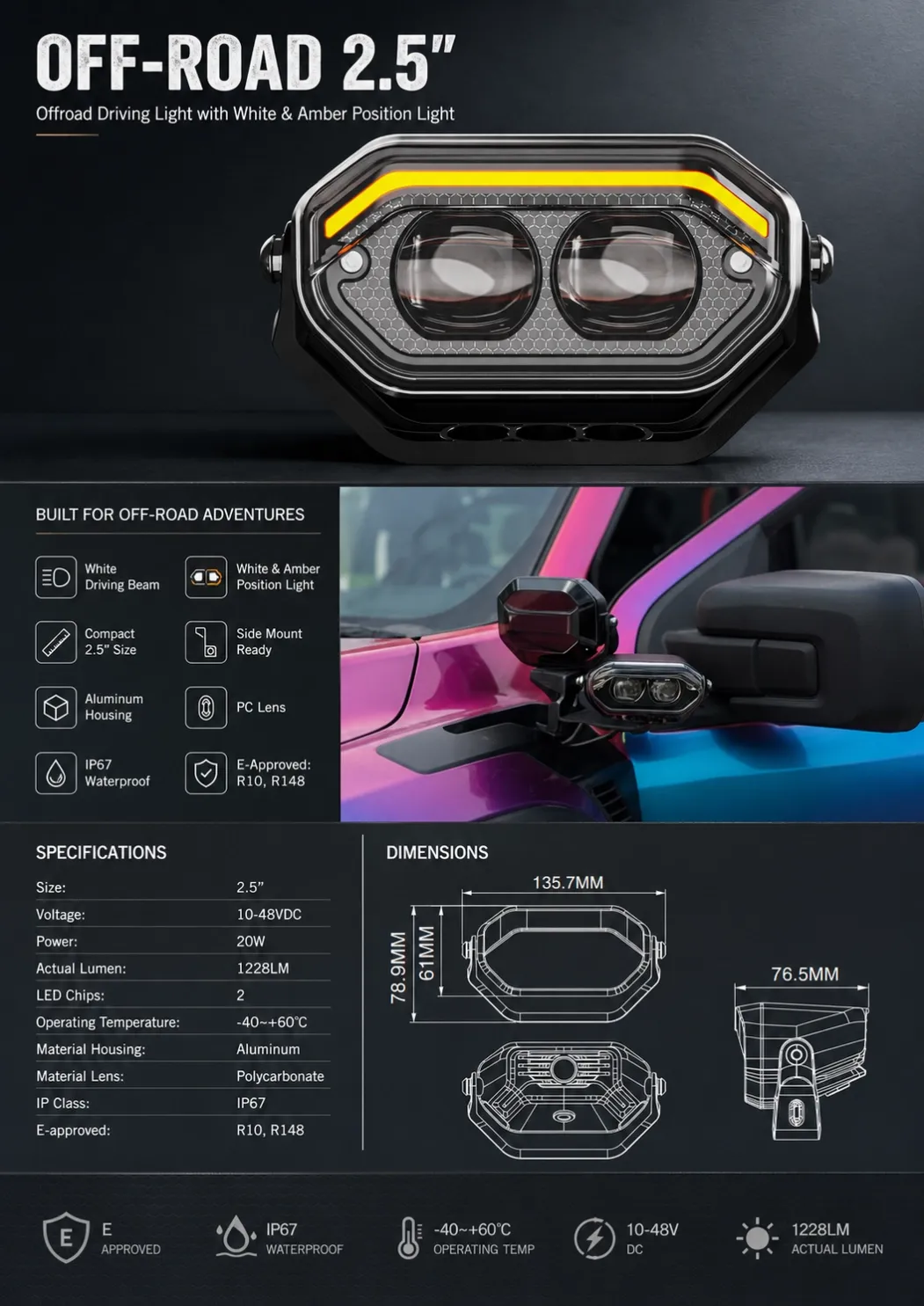

2.5-inch model
• 20W
• 1,228 actual lumens
• Two LED chips
• 10-48V DC
• 135.7 × 78.9 × 76.5 mm
• Operating temperature: -40°C to +60°C
• Side-mount ready

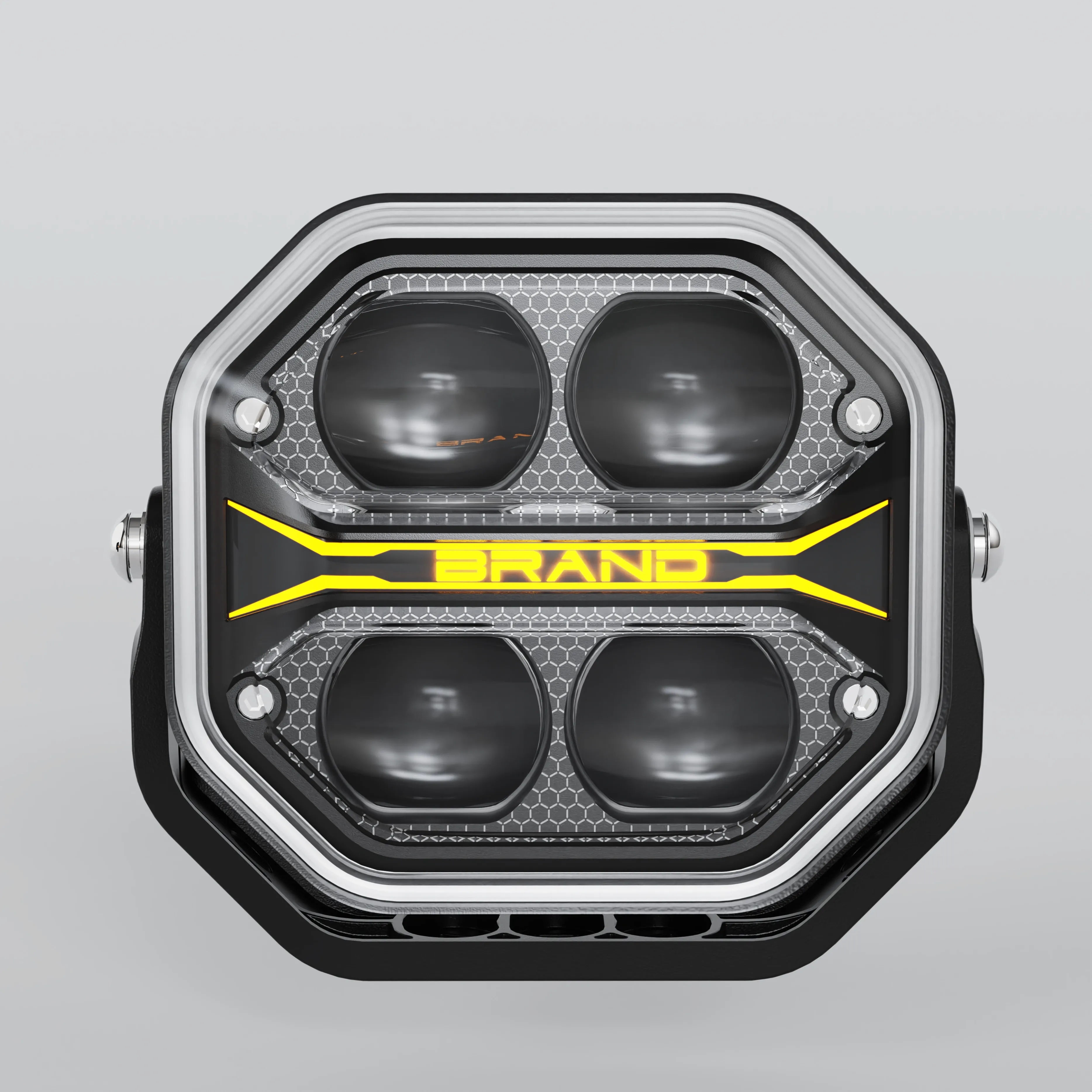

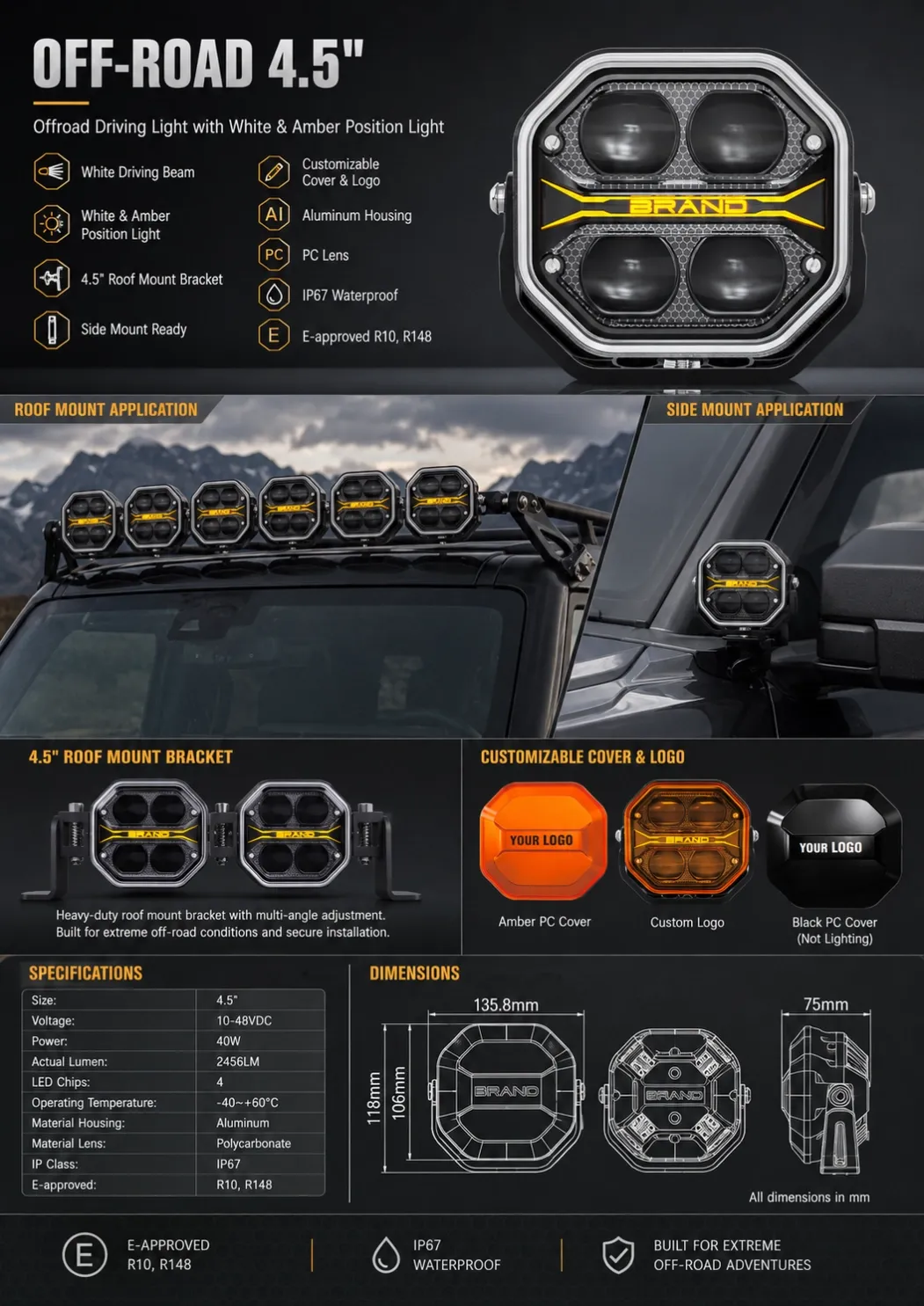

4.5-inch model
• 40W
• 2,456 actual lumens
• Four LED chips
• 10-48V DC
• 135.8 × 118 × 75 mm
• Operating temperature: -40°C to +60°C
• 4.5-inch roof-mount bracket and side-mount capability
• Customizable cover and logo options shown in the brochure

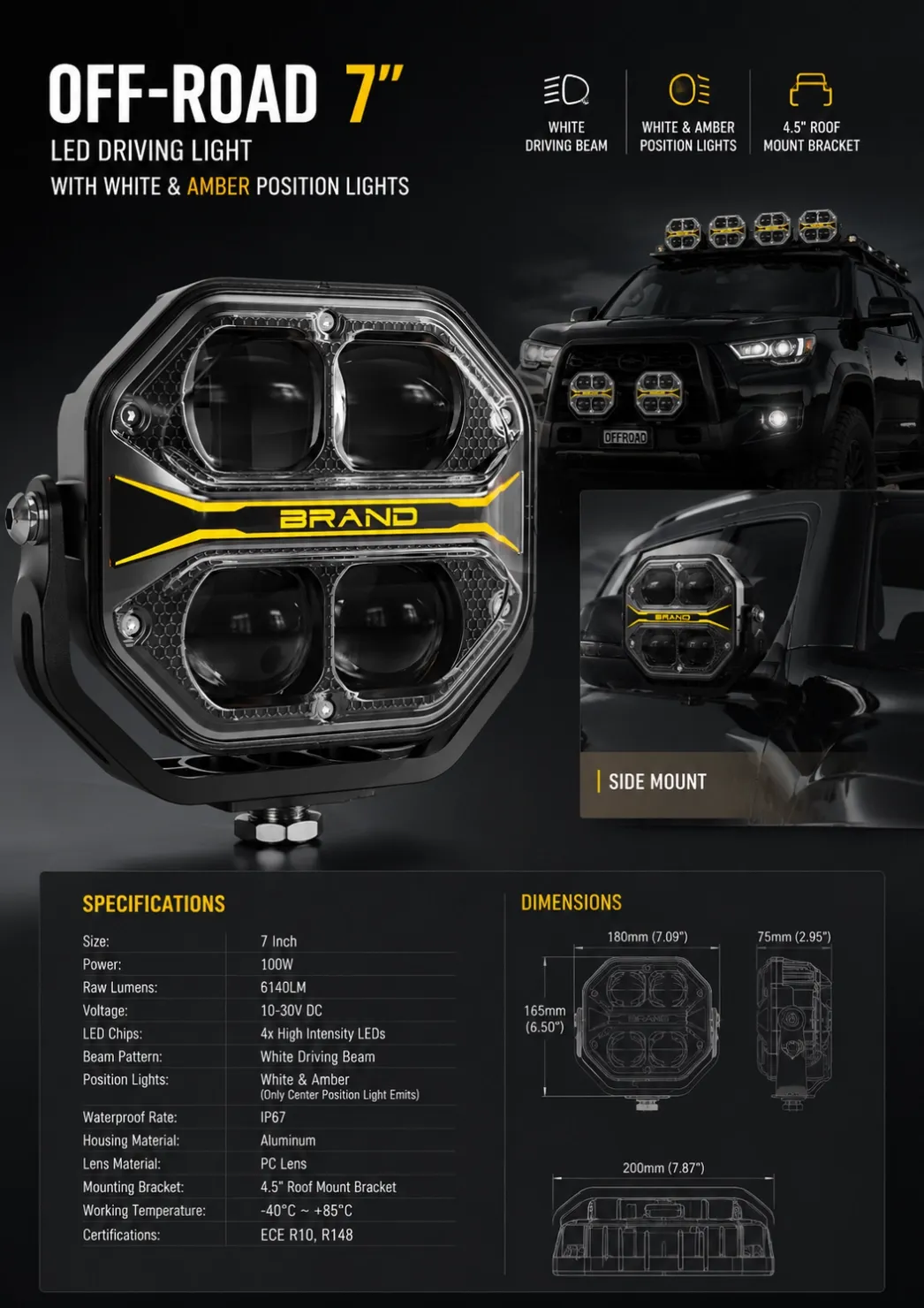

7-inch model
• 100W
• 6,140 raw lumens
• Four high-intensity LEDs
• 10-30V DC
• Lamp body: 180 × 165 × 75 mm
• Overall mounting width shown: 200 mm
• Operating temperature: -40°C to +85°C
• 4.5-inch roof-mount bracket and side-mount capability
B2B PURCHASING VALUE
For distributors, a three-size range supports multiple vehicle segments while keeping the product story consistent. For OEM and private-label buyers, the customizable 4.5-inch cover and logo can support brand differentiation, subject to tooling, MOQ and artwork confirmation. For upfitters, roof and side-mount choices make it easier to plan A-pillar, mirror, bumper and roof-rack installations.
APPLICATIONS
• 4x4 and off-road vehicles
• Pickup trucks and SUVs
• UTV and utility vehicles
• Commercial and heavy vehicles
• Roof racks, bumpers, mirrors and A-pillars
COMPLIANCE AND ORDERING NOTE
ECE R10 and R148 approvals are stated in the brochures. Buyers should request the applicable documents for the exact model and target market. Confirm the selected size, voltage, beam requirement, position-light color, mounting location, wiring, quantity, packaging and any logo customization before ordering.
This series is suitable for importers and vehicle-lighting distributors that want a compact-to-high-output off-road lighting range with documented dimensions, voltage, materials and mounting options. Contact us with the target vehicle and required size so the correct model can be checked before quotation.
