SC6 6-LED Truck Side Marker Light | 10–30V, IP67
SC6 slim surface-mount 6-LED side marker light for trucks, trailers and commercial vehicles. 10–30V DC, IP67, PC lens, ABS housing, 2-wire connection, 96 × 20 × 10 mm body and 79 mm mounting-hole spacing. White, amber, red, green and blue options. Verify color and approval documents for your market.
Specifications
- Model
- SC6
- Product Type
- LED side marker / clearance marker lamp
- Operating Voltage
- DC 10–30V
- LED Quantity
- 6 LEDs
- Mounting
- Surface mount
- Dimensions
- 96 × 20 × 10 mm (3.78 × 0.79 × 0.39 in)
- Mounting Hole Distance
- 79 mm (3.11 in)
- Waterproof Rating
- IP67
- Materials
- PC lens + ABS housing
- Cable Connection
- 2 wires
- Operating Temperature
- -40°C to +85°C
- Color Options
- White / amber / red / green / blue
- Brochure Compliance
- ECE R10 / R65 listed; verify exact documents
- Warranty
- 1 year
SC6 6-LED Side Marker Light for Trucks and Trailers
The SC6 is a slim surface-mount LED side marker light designed for trucks, trailers and other commercial vehicles. For importers, OEM body builders, trailer manufacturers and fleet-parts distributors, a marker lamp must do more than produce light. It must fit the vehicle, work with the electrical system, withstand road exposure and arrive with the documents required for the destination market.
Compact Dimensions Reduce Fitment Risk

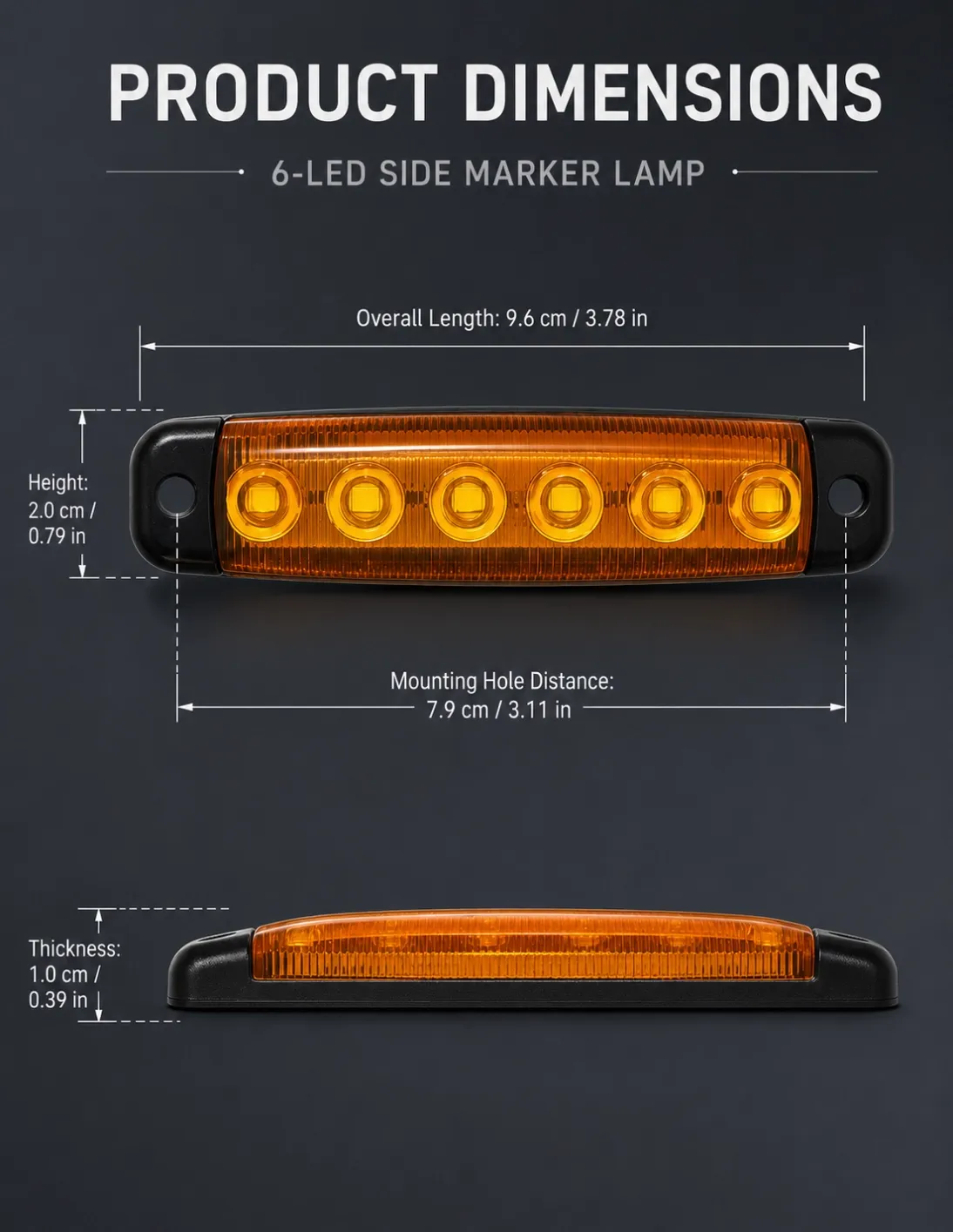

The SC6 measures 96 × 20 × 10 mm, with 79 mm between the mounting holes. Its 10 mm thickness helps it sit close to the vehicle body, which is useful where brackets, doors or cargo structures limit available space.
For an OEM buyer, confirmed dimensions reduce the risk of drilling changes and installation interference during production. The 79 mm hole spacing should still be checked against a real panel or drawing before a bulk order. This simple fitment check can prevent rework across an entire vehicle batch.
Surface Mounting Simplifies Installation
The lamp uses a two-hole surface-mount layout. Surface mounting avoids a large recessed cut-out and can make the SC6 easier to integrate into new truck bodies or replacement programs. This creates practical value through shorter installation time and fewer panel modifications.
The brochure lists a 2-wire connection. Buyers should confirm wire color, polarity, cable length and termination before approving the production specification. A consistent cable and connector requirement helps assembly teams avoid wiring errors and supports faster replacement in fleet service.
Six LEDs for Vehicle Side Visibility
The SC6 uses six LEDs with lens elements. The product material identifies high visibility as a key benefit. For a commercial-vehicle buyer, the relevant value is easier recognition of the vehicle’s side profile in low-light conditions.
Visibility should be checked on the complete vehicle, not only on a workbench. Mounting height, spacing, vehicle length, lamp color and viewing angle all affect the final installation. A sample vehicle test helps the buyer confirm that the chosen layout matches the intended application.
10–30V DC for Mixed Vehicle Programs
A 10–30V DC operating range allows one lamp specification to cover common 12V and 24V commercial-vehicle electrical systems. This can help importers and distributors reduce the number of voltage-specific SKUs they need to stock.
Before ordering, confirm current draw, polarity protection and electrical test documents for the exact model. A broad voltage range supports platform flexibility, but it does not replace project-specific electrical validation.
IP67 and Ultrasonic-Sealed Construction
The brochure states IP67 protection and ultrasonic sealing. These features matter because side marker lamps are exposed to rain, road spray and washing. Better sealing can reduce moisture-related failures, service visits and avoidable warranty claims.
IP67 is the highest protection level claimed for this product. Buyers should request the model-specific test evidence and confirm that production samples use the same housing, lens and cable-sealing design as the approved version.
PC Lens, ABS Housing and Wide Temperature Range
The SC6 uses a polycarbonate lens and ABS housing. The brochure also lists an operating temperature range of -40°C to +85°C. These specifications support use across varied commercial-vehicle environments.
For purchasing managers, consistency is as important as the material name. Confirm lens color, housing finish, ultrasonic-weld quality and dimensional tolerances during sample approval. Stable materials and assembly reduce variation between production batches.
Five Color Options Require Market Verification
Available colors are white, amber, red, green and blue. Multiple colors give OEM and private-label buyers more flexibility, but not every color is legal for side-marker use on public roads. Amber and red are common vehicle-marker colors, while other colors may be restricted or intended for specialized applications.
The destination market, vehicle position and intended function should therefore be stated in the RFQ. This prevents distributors from ordering a visually correct lamp that cannot be legally used in the planned position.
Compliance Documents Must Match the Exact Model
The brochure lists ECE R10 and R65. UN Regulation No. 10 concerns electromagnetic compatibility, while Regulation No. 65 concerns special warning lamps. Side-marker lamp approval in many UNECE markets is normally associated with Regulation No. 91.
Because the regulatory functions differ, buyers should request the exact SC6 certificate, approval number and product marking before advertising any compliance claim. This document-control step reduces customs, homologation and relabeling risk.
Typical B2B Applications and RFQ Checklist
The SC6 is relevant to trailer manufacturers, truck-body builders, commercial-vehicle lighting importers, fleet-maintenance suppliers, agricultural and construction-equipment manufacturers and replacement-parts distributors.
For an accurate quotation, specify the required color, vehicle type, destination market, annual quantity, wire length, connector, packaging, label, approval documents and warranty procedure. The brochure lists a one-year warranty; buyers should also confirm the claim process and replacement terms in the purchase agreement.
