W16 4 Inch LED Work Light & Reverse Light | 24W, 1200 lm
W16 compact 4 inch LED work and reverse light for trucks, trailers, agricultural machinery and utility equipment. 16 × 1.5W LEDs, 24W calculated power, approximately 1200 lm, 10–32V DC input and adjustable bracket mounting.
Specifications
- Model
- W16
- Product Type
- 4 inch work light / reverse light
- LED Count
- 16
- LED Power
- 1.5W per LED
- Calculated Power
- 24W
- Luminous Flux
- Approx. 1200 lm
- Input Voltage
- 10–32V DC
- Light Function
- White work / reverse light
- Mounting
- Adjustable bracket
- Typical Applications
- Truck / trailer / agricultural / utility equipment

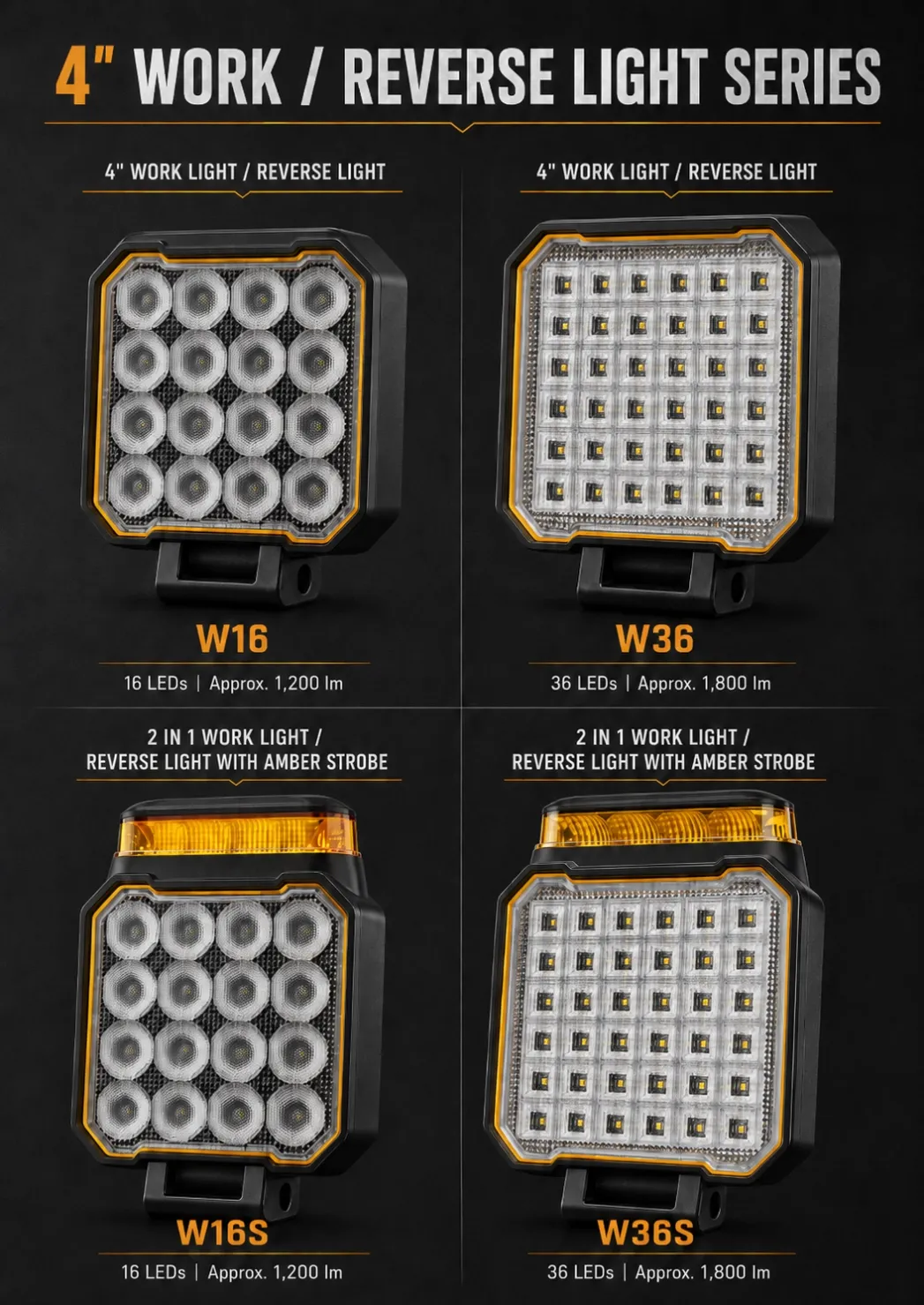

W16 Compact LED Work and Reverse Light
The W16 is a 4 inch auxiliary lamp designed for work-light and reverse-light applications on trucks, trailers, agricultural machinery and utility equipment. Its compact square housing helps equipment manufacturers and distributors cover installations where larger lamps create clearance problems.
16-LED Optical Layout
W16 uses 16 LED chips. Based on the supplied 1.5W-per-LED specification, the calculated total power is 24W. The product sheet lists approximately 1200 lm. For a B2B buyer, this provides a practical output level for close-range reversing, loading-zone visibility and general equipment work areas without moving to an oversized housing.
10–32V DC Compatibility
The standard 10–32V DC input supports common 12V and 24V vehicle systems. Importers and fleet-equipment suppliers can use one electrical version across several vehicle classes, reducing SKU complexity and the risk of ordering the wrong voltage.
Compact 4 Inch Format
A smaller lamp is easier to position near rear cross-members, steps, bumpers and machine frames. This helps OEM and retrofit installers avoid interference with body panels or moving equipment. Before volume ordering, buyers should verify bracket clearance, cable routing and the available mounting surface on the target vehicle.
Adjustable Bracket Mounting
The lower bracket allows the lamp angle to be adjusted after installation. Correct aiming matters because a reverse or work light should illuminate the operating area without creating unnecessary glare. A repeatable bracket also shortens installation time compared with improvised mounting hardware.
Commercial Applications
Typical applications include truck reverse lighting, trailer work areas, agricultural machinery, construction equipment, utility vehicles and fleet retrofits. Distributors can position W16 as the compact option in a broader work-light range.
Purchasing Checklist
Before ordering, confirm the mounting position, connector or cable requirement, beam preference, packaging, branding and annual quantity. The source material does not state an ingress-protection rating or certification, so these documents should be confirmed before making compliance claims or specifying the lamp for a regulated installation.
The business value of W16 is straightforward: a compact, common-voltage work light with a clearly defined LED count and output, making it easier to quote, install and stock for standard commercial-vehicle applications.
