R-414 IP67 LED Trailer Rear Lamp | ECE R10/R148/R150
R-414 paired LED trailer rear lamp with tail, stop/brake, indicator and license-plate functions. 12–24V, IP67, CE, ECE R10/R148/R150 and 110 × 103 × 43 mm body.
Specifications
- Model
- R-414
- Functions
- Tail / Stop-Brake / Indicator / License Plate
- Voltage
- 12–24V DC
- Dimensions
- 110 × 103 × 43 mm
- Materials
- ABS + PC + PMMA
- Mounting
- Screw mount
- Connection
- Wire or connector
- LED Configuration
- 48 LED / 36 PCS (brochure wording; confirm sample BOM)
- Ingress Protection
- IP67
- Brochure-listed Compliance
- CE / ECE R10 / R148 / R150
- Operating Temperature
- -42°C to +67°C
- Brochure-listed Lifetime
- 65,000 hours
- Power Notes
- Brochure lists 1W × 48 LEDs; license plate 2W; stop/brake 5W
R-414 IP67 Multifunction LED Trailer Rear Lamp
The R-414 is a paired multifunction LED trailer rear lamp for OEM trailer programs, body builders, importers and aftermarket distributors. The brochure lists tail, stop/brake, indicator and license-plate functions in a 110 × 103 × 43 mm body, with 12–24V operation, IP67 protection and CE, ECE R10, R148 and R150 references.

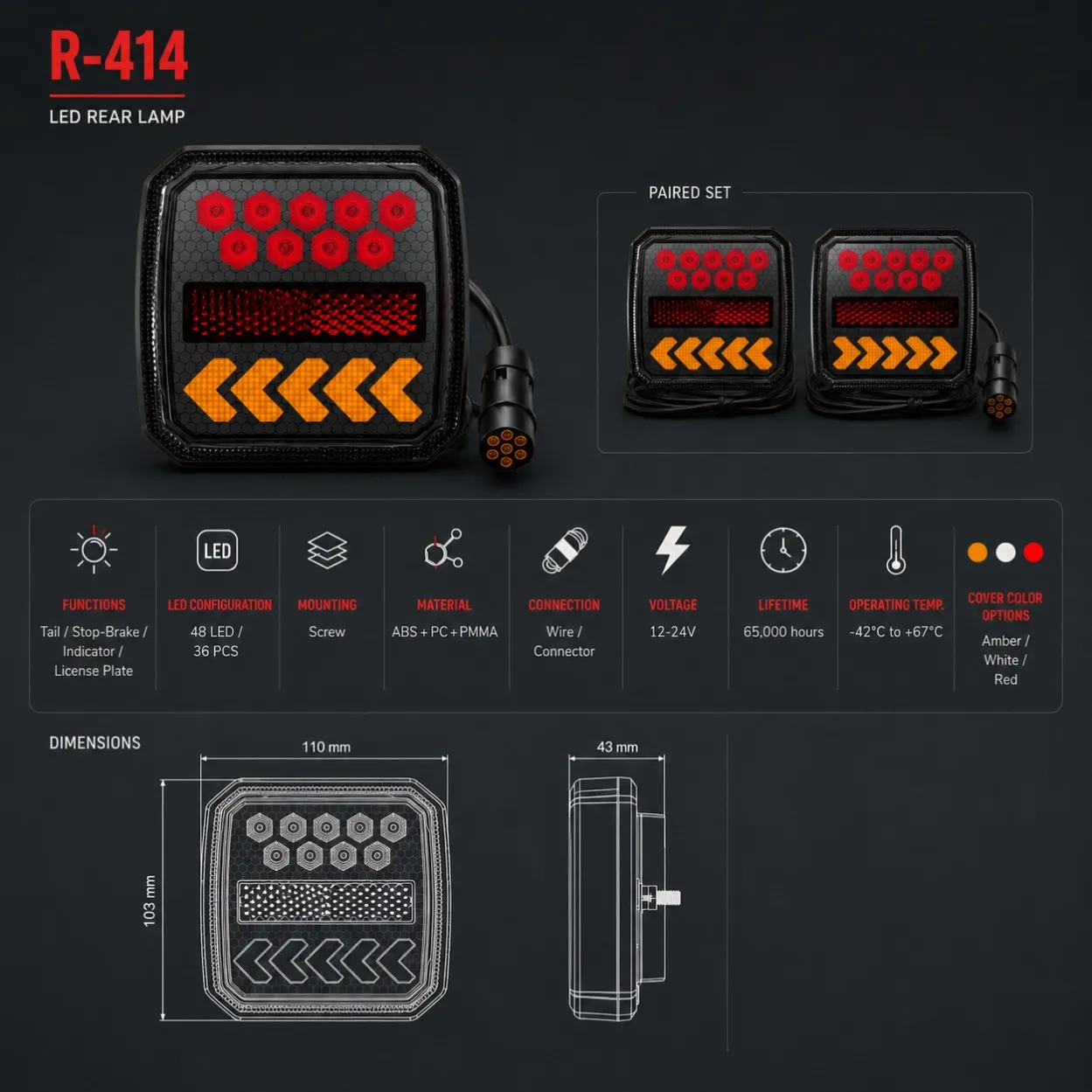

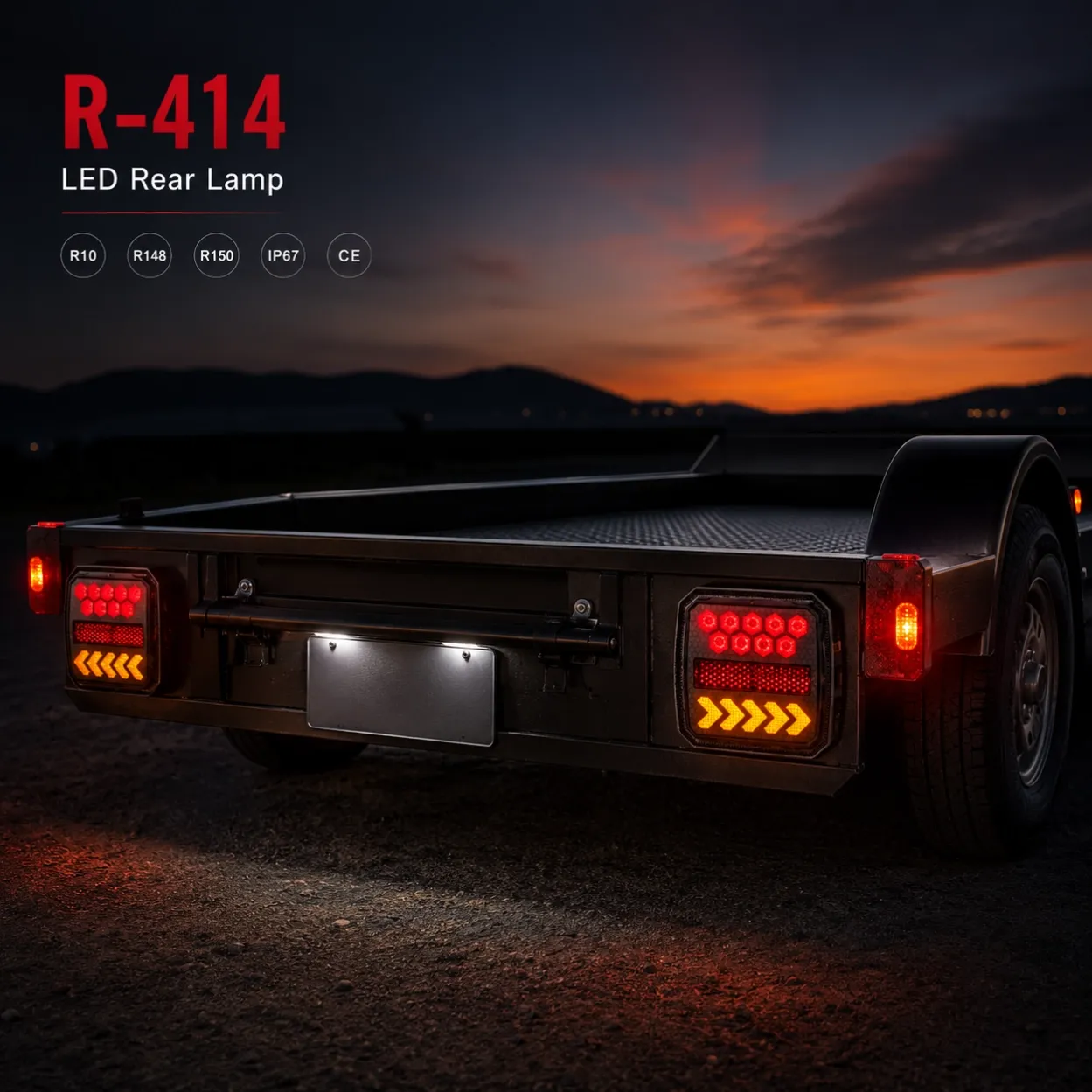

The lamp is shown as a left-and-right pair with directional chevron indicator sections. For a B2B purchaser, the relevant value is a coordinated rear-light set that can simplify vehicle styling, installation and replacement stock. Compliance and production consistency still require document and sample verification.
Why a matched left/right set matters
Trailer manufacturers often need the left and right lamps to align visually and to present the indicator direction correctly. A paired set helps the purchasing specification identify both sides together rather than relying on an installer to adapt a universal lamp.
The technical benefit is a coordinated rear-light layout. The commercial benefit is fewer picking mistakes, a clearer bill of materials and easier aftermarket replacement. Buyers should confirm the left/right part-number convention, packaging quantity and whether connectors and mounting hardware are supplied with each pair.
Four functions in one compact housing
The R-414 brochure lists tail, stop/brake, indicator and license-plate functions. Integrating these functions can reduce separate components, panel openings and wiring interfaces. That may lower assembly time for an OEM and reduce SKU count for a distributor.
Integration also increases the importance of correct pin assignment. Request a wiring diagram, connector specification and function-level electrical data. Test all functions at both 12V and 24V before releasing a production order.
IP67 and brochure-listed approvals
The brochure states IP67, CE, ECE R10, R148 and R150. IP67 is the maximum ingress-protection claim used on this website. These references matter because importers and OEM customers may need environmental and regulatory evidence for the destination market.
A brochure icon is not a substitute for model-specific documentation. Before using the approvals in a catalog, tender or customs file, request copies showing the covered model, applicant, approval number, applicable function and revision. This reduces compliance risk and prevents a certificate from another product family being used incorrectly.
Electrical and LED configuration notes
The brochure specifies 12–24V operation and separately lists “1W × 48 LEDs,” license-plate power of 2W and stop/brake power of 5W. Another brochure section uses the wording “48 LED / 36 PCS.” Because the wording is not fully consistent, the page preserves the source information rather than calculating a total lamp wattage.
Purchasing managers should request measured current for each function, a final bill of materials and a production-sample test report. This creates a defensible specification and prevents warranty disputes over marketing figures.
Compact installation package
The R-414 measures 110 × 103 × 43 mm and uses screw mounting with wire or connector connection options. The brochure lists ABS, PC and PMMA materials, an operating temperature of -42°C to +67°C and a 65,000-hour lifetime figure.
For body builders, the compact depth can help when rear-panel space is limited. For distributors, clear dimensions reduce incorrect fitment claims. Confirm mounting centers, rear clearance, connector type, cable length, fasteners and left/right orientation on a sample.
Who is most likely to purchase the R-414?
Trailer OEMs may value the paired design and documented compliance references. Importers and brand owners may use the compact 12–24V platform to serve several vehicle segments. Trailer-parts distributors may benefit from a visually distinctive replacement option, while fleet maintenance companies may evaluate it for standardized replacement programs.
Each buyer group should define the destination market and vehicle function before ordering. A lamp should not be marketed as approved merely because similar-looking products carry certificates.
Pre-order validation checklist
Confirm left/right part numbers, dimensional drawing, wiring diagram, connector, current draw, IP67 evidence, CE and ECE documentation, lens markings, temperature test, packaging, label artwork, traceability and golden-sample approval. A pilot order with final connectors and packaging is recommended before container quantity.
Send the trailer type, destination market, annual volume, connector preference and required approvals with the RFQ. A complete application brief helps reduce quotation revisions and identifies any specification that still requires validation.
