LED Light Bar
LBC Single Row LED Light Bar | Slim Position Light, IP67
Slim, cost-effective LBC single-row LED light bar for trucks, off-road vehicles and fleet equipment. 10–48V DC, integrated position light, IP67 aluminum housing, polycarbonate lens, ECE R10/R148 approvals and 350, 500 and 650 mm product versions shown.

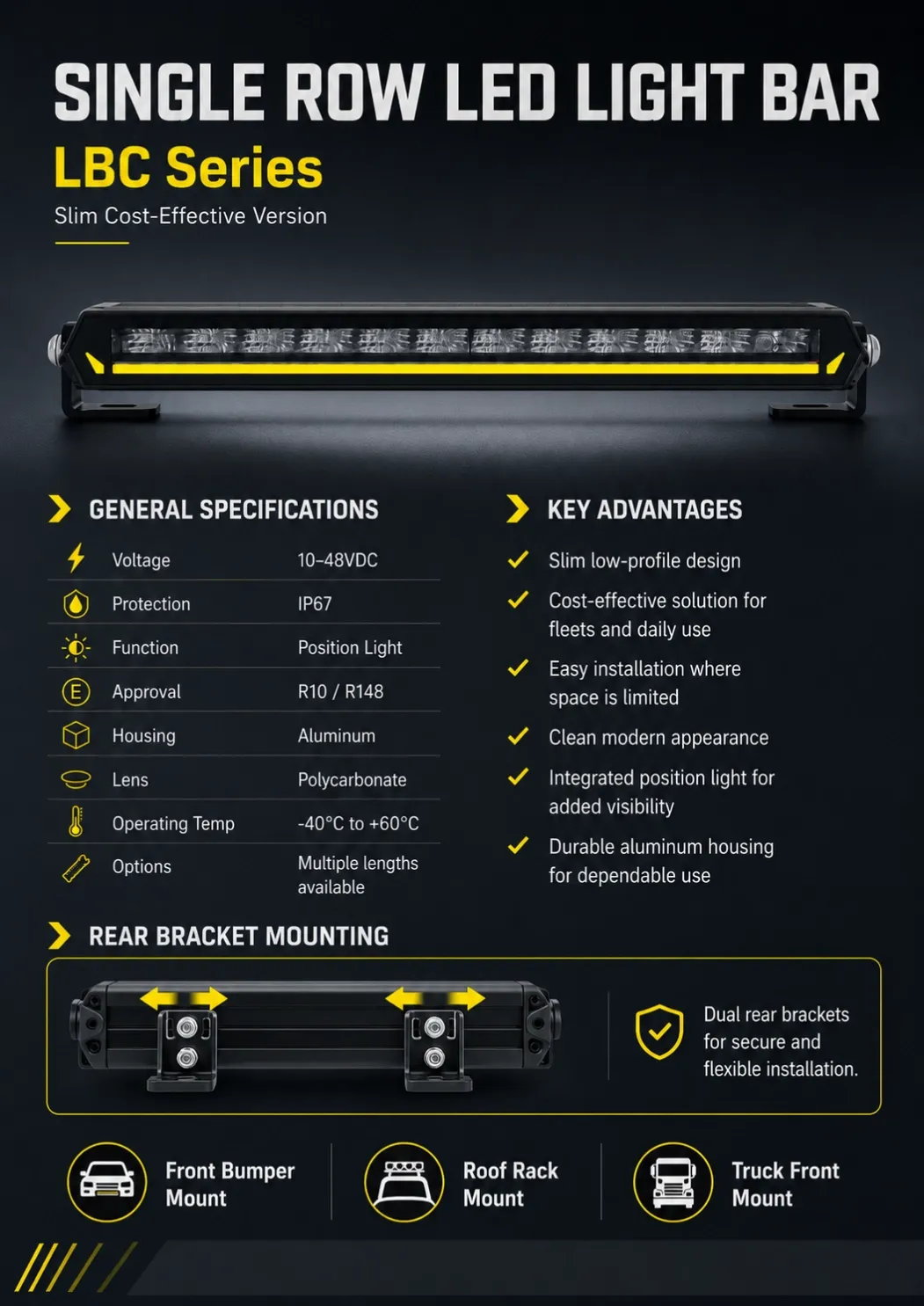

Specifications
- Series
- LBC single-row LED light bar
- Design
- Slim low-profile single row
- Input Voltage
- 10–48V DC
- Position Light
- Integrated white / amber
- Lengths Shown
- 350 / 500 / 650 mm
- Mounting
- Dual rear brackets
- Mounting Positions
- Front bumper / roof rack / truck front
- Housing
- Aluminum
- Lens
- Polycarbonate
- Ingress Protection
- IP67
- Operating Temperature
- -40°C to +60°C
- Approvals
- ECE R10 / ECE R148
LBC Single-Row LED Light Bar for Space-Constrained Installations
The LBC series is a slim single-row LED light bar for trucks, off-road vehicles and fleet equipment. It is intended for buyers who need useful auxiliary lighting without the height and visual weight of a double-row bar. The brochure positions the range as a cost-effective option for daily and fleet applications.
Why a Single-Row Platform Matters
A single-row housing is easier to place where bumper, grille or roof-rack clearance is limited. For OEM engineers and upfitters, reduced housing height can avoid interference with body panels, cameras or accessories. For distributors, a compact product also broadens the number of vehicles that can accept the same general light-bar family.
Integrated Position Light
The LBC series includes an integrated position-light function, shown in white and amber applications in the brochure. Combining the auxiliary beam and position-light styling in one housing helps create a cleaner installation and reduces the need to add a separate decorative light. Buyers should confirm the required color, wiring configuration and permitted road use for the destination market.
Wide 10–48V DC Input
Compatibility with 10–48V DC electrical systems allows the series to serve passenger-based off-road builds, commercial trucks and certain equipment platforms. A wider voltage range can reduce SKU complexity for importers and fleet-equipment distributors and lowers the risk that installers receive a voltage-specific product that does not match the vehicle.
Secure Rear Brackets
Dual rear mounting brackets provide a secure and flexible installation method. The bar can be fitted to front bumpers, roof racks or truck fronts as shown in the product materials. Defined mounting points help installers plan support spacing and reduce movement caused by an improvised bracket arrangement.

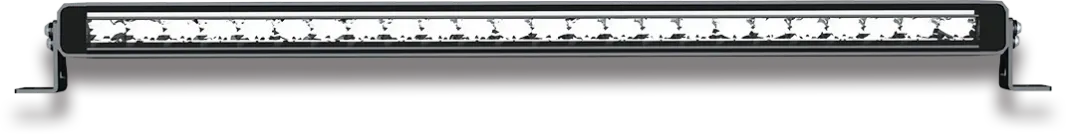

Three Product Lengths Shown
The available product images show 350 mm, 500 mm and 650 mm versions. Offering several lengths allows buyers to match the bar to different grille openings and rack widths while keeping a consistent appearance. Before bulk ordering, confirm the exact model code, overall dimensions and electrical output for each required length.
Environmental Durability
The aluminum housing and polycarbonate lens are rated to IP67, with an operating temperature range from -40°C to +60°C. This matters for construction, agricultural and off-road markets where dust, rain and temperature variation can drive premature failures. A protected housing helps reduce replacement costs and warranty handling.
Approval Planning
The brochure lists ECE R10 and ECE R148. Procurement teams should request documents for the exact LBC model and verify the intended position-light function and mounting location against local regulations. Early document checking reduces the risk of approval problems after packaging, inventory or dealer materials have already been prepared.
B2B Purchasing Checklist
When requesting samples or a quotation, specify the required length, position-light color, voltage system, mounting location, cable or connector requirement, order volume, packaging and approval documents. Buyers should also test beam suitability, bracket fit and wiring on the target vehicle before committing to volume production.
The LBC series is relevant to vehicle-lighting importers, aftermarket brand owners, truck accessory distributors, OEM upfitters and fleet maintenance suppliers seeking a slim light bar that is easier to position and standardize across multiple vehicles.
