LD1 Double Row LED Light Bar | White/Amber Position Light, IP67
LD1 double-row LED light bar for trucks, off-road vehicles and equipment. Seven lengths from 360 to 1276 mm, 120W to 480W, white/amber position light, 10–48V DC, IP67 aluminum housing, polycarbonate lens, adjustable sliding brackets and ECE R10/R148 approvals.
Specifications
- Series
- LD1 double-row LED light bar
- Beam
- High-output double-row driving beam
- Position Light
- White / amber
- Input Voltage
- 10–48V DC
- Available Lengths
- 360 / 513 / 666 / 819 / 971 / 1124 / 1276 mm
- Power by Length
- 120 / 180 / 240 / 300 / 360 / 420 / 480W
- LED Count by Length
- 24 / 36 / 48 / 60 / 72 / 84 / 96
- Luminous Flux
- 6696 / 10044 / 13392 / 16740 / 20088 / 23436 / 26784 lm
- Body Size
- 71 mm high × 58 mm wide
- Mounting
- Adjustable sliding brackets
- Housing
- Aluminum
- Lens
- Polycarbonate
- Ingress Protection
- IP67
- Operating Temperature
- -40°C to +60°C
- Approvals
- ECE R10 / ECE R148
LD1 Double-Row LED Light Bar for Multi-Size Vehicle Programs
The LD1 series is a double-row LED light bar developed for trucks, off-road vehicles and equipment that require a high-output driving beam plus an integrated white or amber position light. For B2B buyers, the value of a light bar range comes from more than maximum wattage. A practical series should cover several vehicle widths, use consistent mounting hardware and provide documented electrical and environmental specifications.

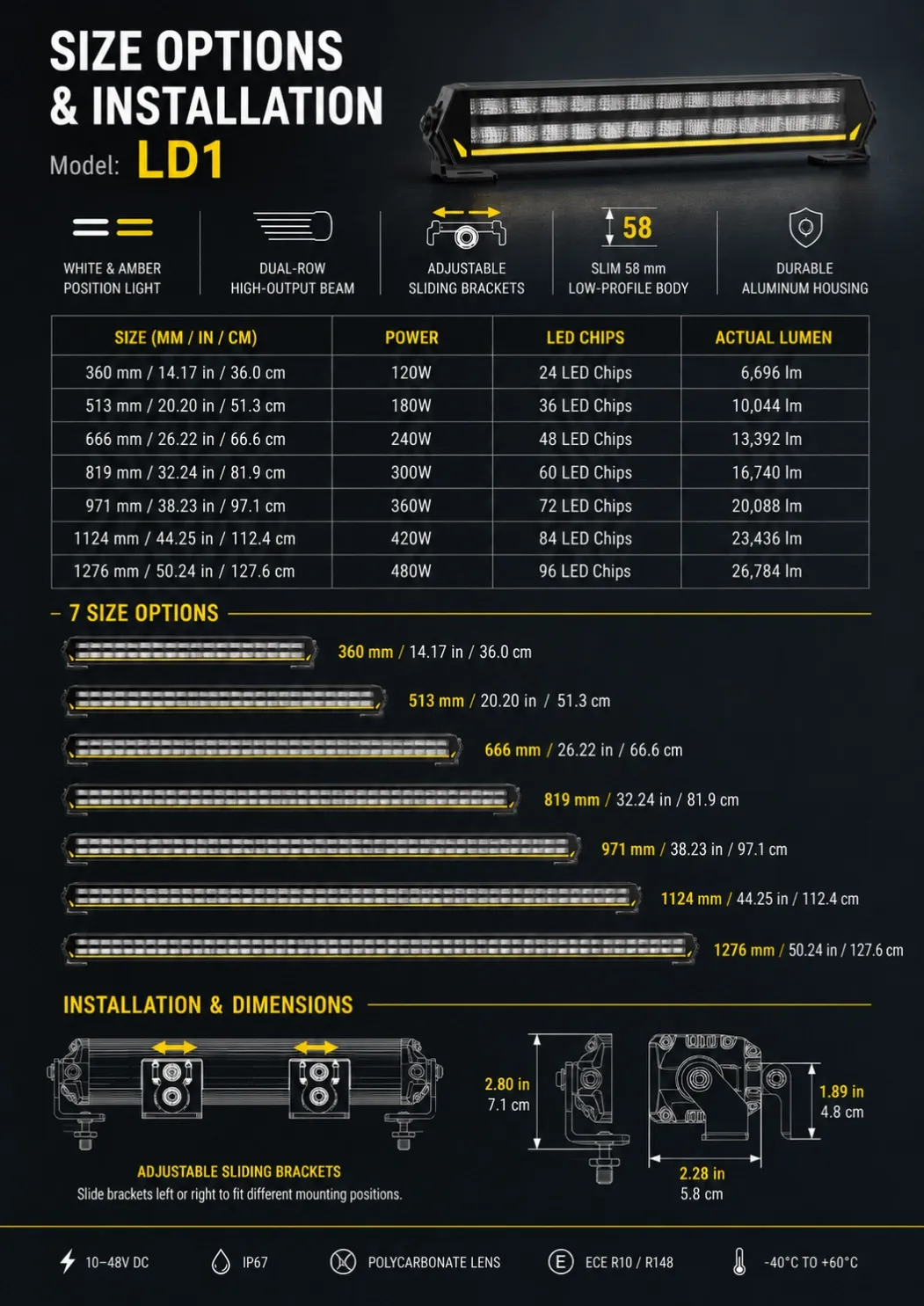

Seven Lengths on One Product Platform
LD1 is available in seven lengths from 360 mm to 1276 mm. Power ranges from 120W to 480W, with output from 6696 lm to 26784 lm. This graduated range lets importers and brand owners serve compact vehicles, pickup trucks, heavy trucks and equipment without sourcing unrelated light-bar designs from several suppliers.
Using one visual platform across multiple sizes can simplify catalog management, spare-part planning and dealer training. It also gives OEM customers a consistent appearance when different vehicle models require different bar lengths.

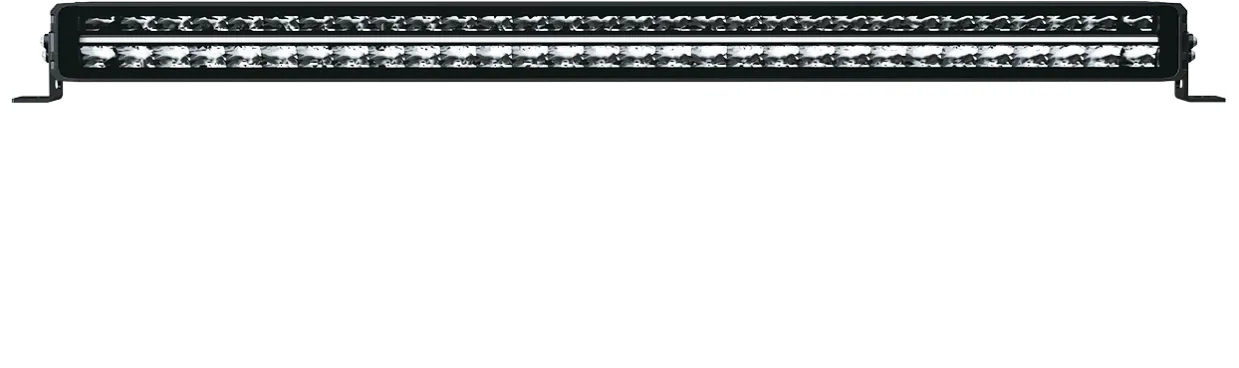

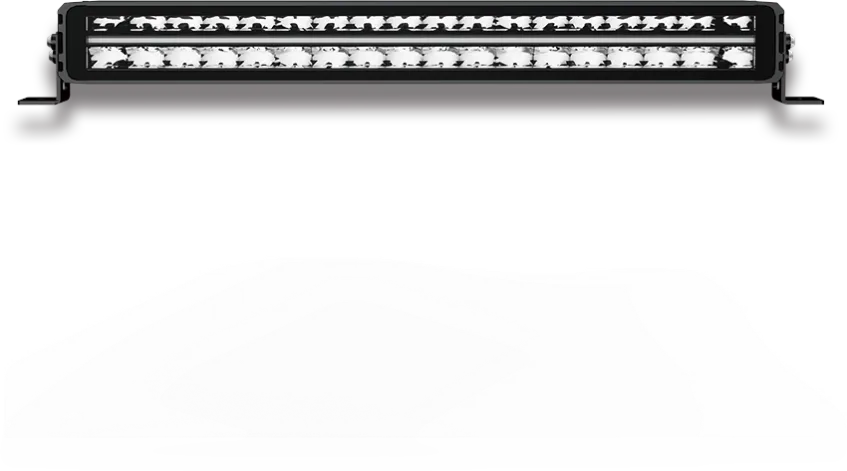

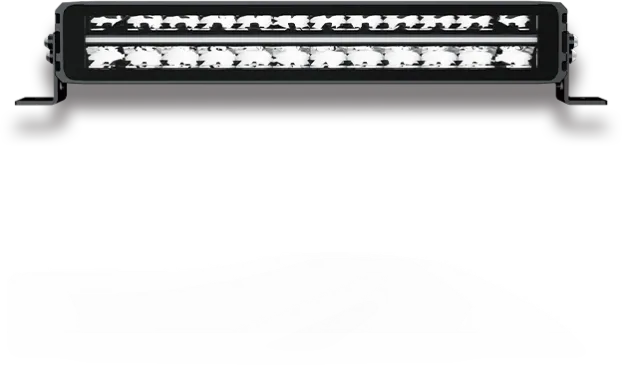

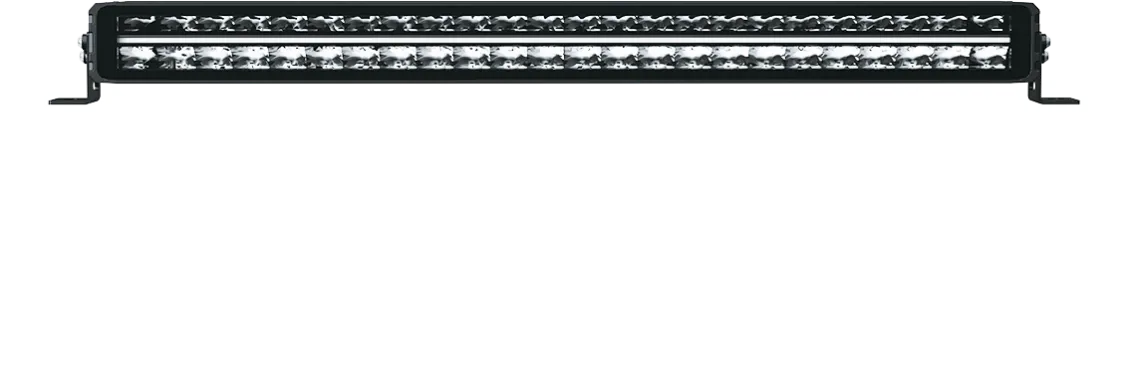

Double-Row Beam and Position Light
The double-row LED layout provides a high-output beam for dark work areas and off-road routes. An integrated white or amber position light adds a recognizable appearance and gives distributors two styling options. Buyers should confirm how the position-light function will be wired and whether local regulations permit the selected color and use.
Wide-Voltage Compatibility
Operation from 10–48V DC supports a broad range of commercial and off-road electrical systems. For equipment manufacturers and fleet customers, a wide-voltage platform can reduce the number of voltage-specific SKUs and lower the risk of purchasing the wrong electrical version.
Adjustable Sliding Brackets
The brackets can slide along the housing, helping installers align the mounting points with different roof racks, bumpers and vehicle structures. This flexibility reduces the need for custom brackets and can shorten installation time. It also lowers fitment-related returns when distributors sell the same bar for several vehicle applications.
Slim 58 mm Housing
The housing is 58 mm wide with a 71 mm body height. A defined low-profile cross-section helps engineers check clearance around grilles, racks and cab roofs before ordering samples. Accurate dimensional planning reduces the chance of interference during pilot installation.
Environmental Protection
The aluminum housing and polycarbonate lens are rated to IP67, with an operating range from -40°C to +60°C. For buyers serving construction, agricultural or off-road markets, resistance to water, dust and temperature change helps reduce field failures, warranty claims and emergency replacements.
Compliance and Sourcing Checks
The brochure lists ECE R10 and ECE R148. Purchasing teams should request the approval documents for the exact LD1 variant and confirm that the intended installation and position-light use meet destination-market rules. Documentation should be reviewed before final packaging artwork or bulk production.
When requesting a quotation, specify the length, power, position-light color, connector or cable requirement, mounting location, packaging and annual volume. This information allows faster configuration review and reduces sample revisions.
