LED Light Bar
LS006 Super Slim Single-Row LED Light Bar | 7–49 Inch
LS006 super slim single-row LED light bar for off-road, truck and work-vehicle applications. 7–49 inch sizes, 18–144W, 1,260–8,820 effective lumens, 10–30V DC, aluminum housing, stainless-steel brackets and spot, flood or combo beam options.
Specifications
- Model
- LS006
- Product Type
- Super slim single-row LED light bar
- Operating Voltage
- DC 10–30V
- Size Options
- 7 / 13 / 19 / 25 / 31 / 37 / 49 inch
- Length Options
- 176 / 331 / 485 / 641 / 796 / 944 / 1248 mm
- Power Options
- 18 / 36 / 54 / 72 / 90 / 108 / 144W
- LED Quantity
- 6 / 12 / 18 / 24 / 30 / 36 / 48 pcs
- Effective Lumen
- 1260 / 2520 / 3780 / 5040 / 6300 / 7560 / 8820 lm
- LED Chip
- ETI
- Beam Pattern
- Spot / flood; combo on 13–49 inch
- Housing Material
- Aluminum
- Bracket Material
- Stainless steel
- IP & Compliance
- Not stated in brochure; confirm before order
LS006 Super Slim Single-Row LED Light Bar for Off-Road and Work Vehicles
The LS006 is a super slim single-row LED light bar offered in seven sizes from 7 to 49 inches. It is designed for buyers who need a low-profile auxiliary lighting platform for trucks, pickups, off-road vehicles, agricultural machinery and work equipment.
For importers, brand owners, equipment manufacturers and distributors, the value of a light-bar range is not only maximum output. Buyers must balance installation space, beam pattern, vehicle voltage, SKU planning and verified performance. The LS006 provides a structured size range, while leaving project-specific compliance and environmental requirements to be confirmed before ordering.

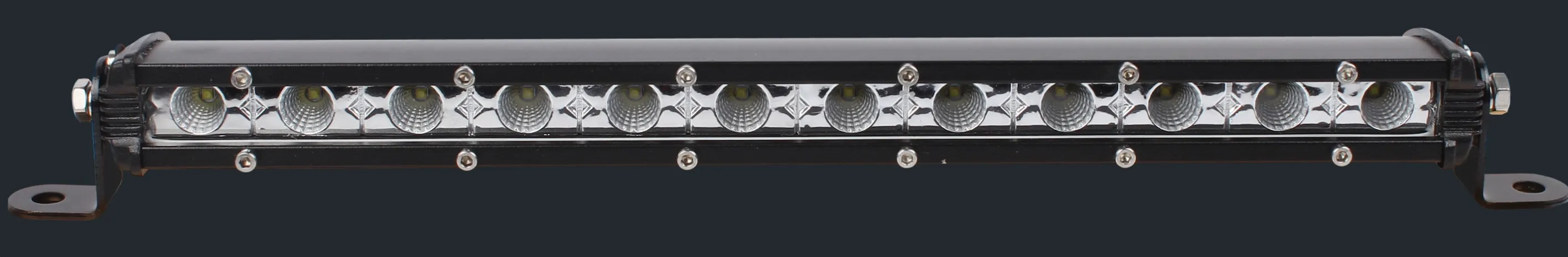

Super Slim Single-Row Design
The single-row housing keeps the visual profile lower than a double-row light bar. This matters when roof height, grille airflow, bumper space or machine sightlines limit the available installation area.
A slimmer housing can reduce obstruction and create a cleaner OEM-style appearance. For equipment manufacturers, it may also simplify placement across several vehicle platforms. Buyers should request the full cross-section and bracket dimensions because the brochure lists bar length but does not provide complete height or depth measurements.
Seven Sizes for Platform and Inventory Planning
Available nominal sizes are 7, 13, 19, 25, 31, 37 and 49 inches. Their listed bar lengths are 176, 331, 485, 641, 796, 944 and 1,248 mm.
A coordinated size range allows distributors to serve compact vehicles, mid-size trucks and larger equipment with one product family. It can also make packaging, branding and spare-parts planning more consistent. However, the LS006 is one model family with size variants; the selected length, wattage and beam pattern should be clearly stated on every quotation and purchase order.
Output Matched to Each Size

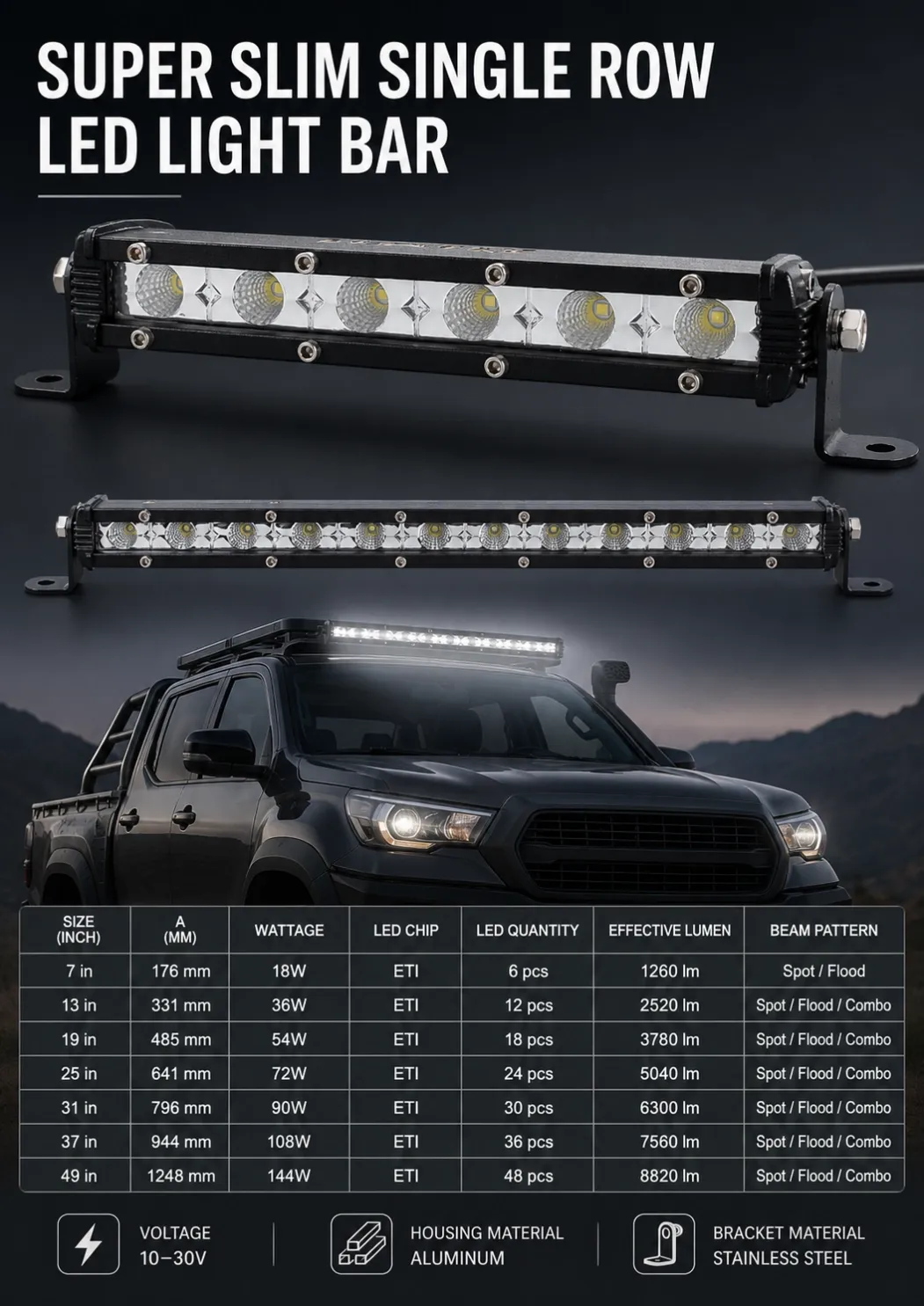

The brochure provides the following performance matrix:
7 inch: 18W, 6 LEDs, 1,260 effective lumens
13 inch: 36W, 12 LEDs, 2,520 effective lumens
19 inch: 54W, 18 LEDs, 3,780 effective lumens
25 inch: 72W, 24 LEDs, 5,040 effective lumens
31 inch: 90W, 30 LEDs, 6,300 effective lumens
37 inch: 108W, 36 LEDs, 7,560 effective lumens
49 inch: 144W, 48 LEDs, 8,820 effective lumens
These figures help buyers compare the sizes without relying on appearance alone. The business value is better vehicle-to-output matching and fewer returns caused by over- or under-specification. Buyers should request the photometric test method and confirm whether production output is measured using the same definition of effective lumen.
ETI LED Chips
The product material lists ETI LED chips across the range. A common chip designation can support greater consistency between size variants, which matters to brand owners managing color appearance and customer expectations.
The chip name alone does not prove completed-lamp performance. Sample approval should include light output, color consistency, thermal behavior and electrical checks on the exact size being purchased.
Spot, Flood and Combo Beam Choices
The 7-inch version is listed with spot or flood options. The 13- through 49-inch versions add a combo-beam option.
A spot beam supports longer-distance forward visibility, while a flood beam illuminates a wider nearby work area. A combo pattern balances these two needs. Correct beam selection reduces customer dissatisfaction and prevents distributors from holding inventory that does not match the intended application.
For OEM projects, test the beam at the planned mounting height and angle. A useful beam on a bumper may perform differently on a roof or machinery cab.
10–30V DC Operating Range
The 10–30V DC range supports common 12V and 24V vehicle systems. This can help distributors reduce voltage-specific stock and gives equipment manufacturers more flexibility across mixed fleets.
Before production, confirm current draw, cable length, connector, polarity protection and electromagnetic-compatibility requirements. The brochure does not list these details, so they should be documented in the approved specification rather than assumed.
Aluminum Housing and Stainless-Steel Brackets
The brochure states an aluminum housing and stainless-steel bracket material. Aluminum is commonly chosen for heat dissipation and weight control, while stainless-steel brackets help provide a stable mounting interface.
For a B2B buyer, the purchasing value is more predictable installation and serviceability. Request bracket drawings, fastener details and corrosion-test evidence for the intended environment. Material names alone do not confirm coating quality or long-term corrosion resistance.
Environmental and Compliance Checks
The supplied LS006 brochure does not state an IP rating, operating-temperature range, EMC approval or road-use certification. These claims have therefore not been added to this product page.
Importers and OEM buyers should request model- and size-specific test reports before making waterproof or compliance statements. They should also confirm local rules for auxiliary driving lights, mounting positions and use on public roads. This reduces the risk of unsupported marketing claims, relabeling and warranty disputes.
Typical Buyers and RFQ Checklist
The LS006 is relevant to off-road lighting importers, 4×4 accessory brands, truck-equipment distributors, agricultural and construction-machinery manufacturers, fleet upfitters and private-label lighting programs.
A complete RFQ should specify the chosen size, beam pattern, order quantity, vehicle voltage, cable and connector, mounting position, packaging, branding, environmental test requirements, compliance documents and warranty expectations. Approving a sample on the real vehicle remains the most reliable way to confirm fitment, beam performance and installation time before a production order.
