LED Light Bar
WMB1 LED Warning Light Bar with Wireless Controller | 20-58 Inch
WMB1 low-profile LED warning light bar for emergency, utility and commercial vehicles. Nine sizes from 20 to 58 inches, 54-162W, 54-150 LEDs, DC10-30V, 16 flash patterns, IP67 protection, wireless controller, 3.5 m cable, mounting brackets and screws. Amber or blue/white/red options.
Specifications
- Model
- WMB1
- Product Type
- LED Warning Light Bar
- Voltage
- DC10-30V
- Flash Patterns
- 16
- IP Rating
- IP67
- Size Range
- 20 / 24 / 29 / 34 / 39 / 44 / 48 / 53 / 58 in
- Power Range
- 54-162W
- LED Quantity
- 54-150 LEDs
- Cable Length
- 3.5 m
- Mounting
- Brackets + Screws
- Control
- Wireless Controller + ON/OFF Switch
- Working Temperature
- -40°C to +85°C
- Color Options
- Amber / Blue / White / Red
- Certifications
- ECE R10 / ECE R65
WMB1 LED WARNING LIGHT BAR FOR COMMERCIAL AND EMERGENCY VEHICLE PROGRAMS
The WMB1 is a low-profile roof-mounted LED warning light bar developed for vehicle equipment distributors, emergency-vehicle upfitters, truck body builders and fleet operators. It combines nine length options with a common electrical and control platform, allowing buyers to cover different vehicle sizes without sourcing unrelated product families.
WHY THE WMB1 MATTERS TO B2B BUYERS
- Nine sizes for broader vehicle coverage The range covers 20, 24, 29, 34, 39, 44, 48, 53 and 58 inches. For distributors and upfitters, this makes it easier to match compact service vehicles, pickups, trucks and full-size emergency vehicles while keeping purchasing within one product series. A shared platform can simplify quotations, product training and inventory planning.
- DC10-30V input for mixed fleets DC10-30V compatibility supports common 12V and 24V vehicle electrical systems. Buyers serving mixed fleets can reduce voltage-related SKU fragmentation and lower the risk of ordering an unsuitable version for a customer vehicle.
- 16 flash patterns with wireless control Sixteen selectable flash patterns provide operational flexibility for different warning applications. The supplied wireless controller and ON/OFF switch give installers and vehicle operators a defined control solution without needing to source a separate controller.
- Installation kit included The brochure specifies a 3.5-meter cable, mounting brackets, screws and a wiring harness kit. Supplying the principal mounting and connection components together helps upfitters reduce missing-part delays, shorten preparation time and make installation planning more predictable.
- IP67 protection and wide operating temperature The WMB1 is rated IP67 and specified for operation from -40°C to +85°C. These characteristics matter to fleets that operate in rain, dust, winter conditions or high ambient temperatures because environmental resistance can help reduce unplanned replacement and vehicle downtime.
- Certification support for regulated programs ECE R10 and ECE R65 are stated on the product brochure. For importers and vehicle builders, certification documentation can reduce compliance review risk. Buyers should confirm that the exact size, color configuration and market application are covered by the required certificates before placing a production order.

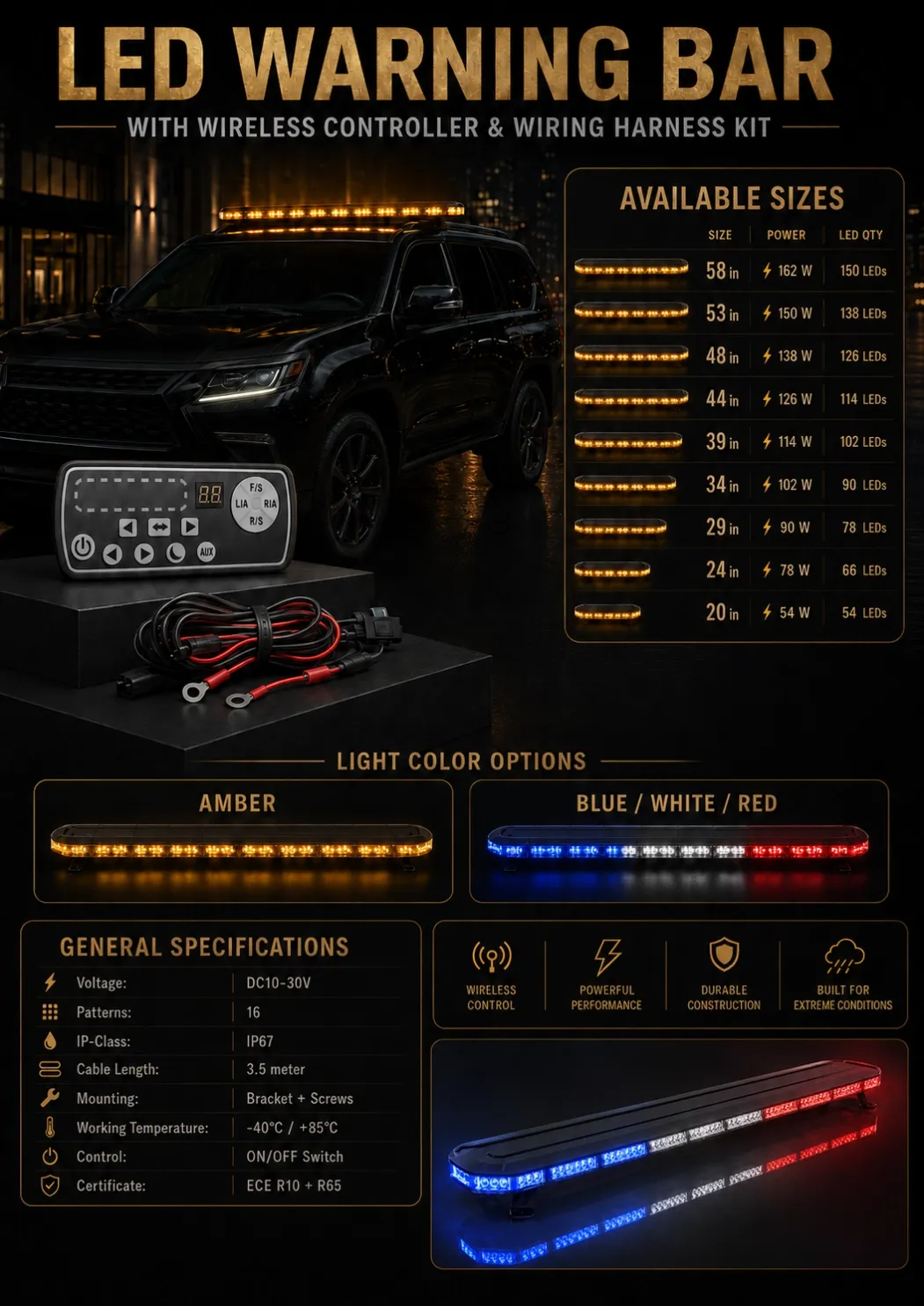

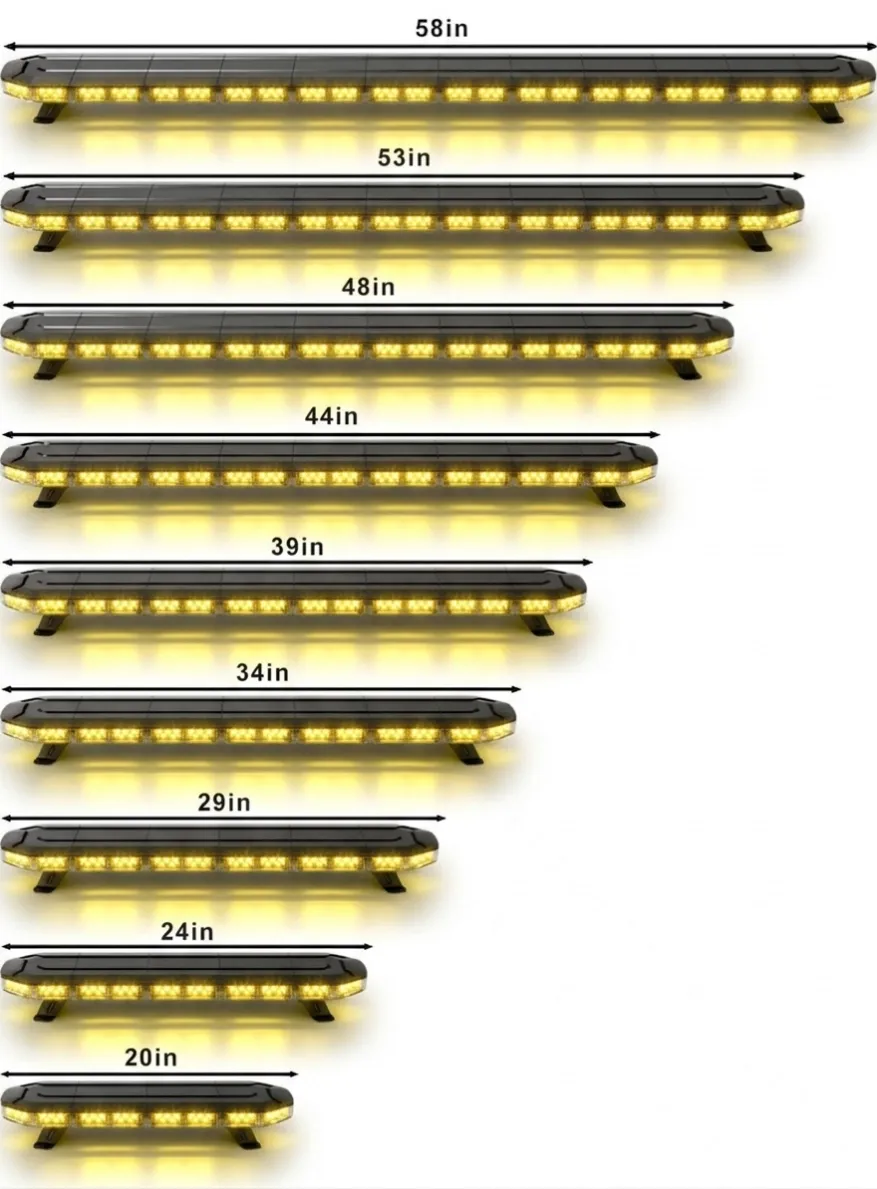

AVAILABLE SIZES
• 20 inch — 54W — 54 LEDs
• 24 inch — 78W — 66 LEDs
• 29 inch — 90W — 78 LEDs
• 34 inch — 102W — 90 LEDs
• 39 inch — 114W — 102 LEDs
• 44 inch — 126W — 114 LEDs
• 48 inch — 138W — 126 LEDs
• 53 inch — 150W — 138 LEDs
• 58 inch — 162W — 150 LEDs
COLOR CONFIGURATIONS
Available colors shown in the brochure include amber and blue/white/red configurations. Warning-light colors are regulated differently by country, state and vehicle class. Distributors and OEM customers should specify the intended market and vehicle application so the permitted color configuration can be confirmed before production.
TYPICAL APPLICATIONS
• Tow and recovery vehicles
• Utility and service trucks
• Construction and road-maintenance fleets
• Municipal and fleet vehicles
• Emergency-vehicle conversion projects
• Commercial vehicle body-building programs
BUYER CHECKLIST BEFORE ORDERING
Confirm the vehicle roof width, preferred light-bar length, 12V or 24V electrical system, required color configuration, local warning-light regulations and the certificate scope for the intended market. For OEM or private-label programs, also confirm controller layout, cable routing, packaging and order-volume requirements during quotation.
TECHNICAL SUMMARY
Model: WMB1
Product type: LED warning light bar
Voltage: DC10-30V
Flash patterns: 16
Protection: IP67
Cable length: 3.5 meters
Mounting: Brackets and screws
Control: Wireless controller and ON/OFF switch
Working temperature: -40°C to +85°C
Colors: Amber or blue/white/red
Certificates stated: ECE R10 and ECE R65
For distributors, importers and vehicle equipment manufacturers, the WMB1 provides a practical multi-size warning-light platform with a consistent control and installation concept. Contact us with the target vehicle, market, required length, voltage and color so the appropriate configuration and documentation can be checked.
